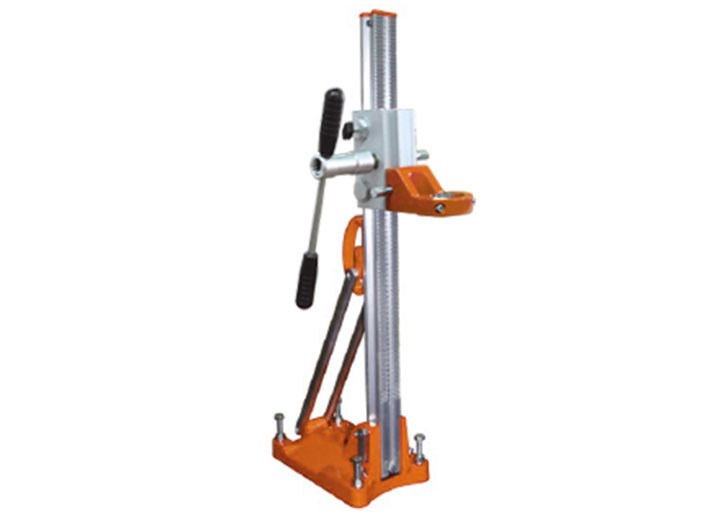

DS250S
Lightweight aluminium drill stand with an anchor-/vacuum base
- Lightweight and solid drill stand: 26.5lbs (12 kg)
- Travel length: 26 in. (650 mm)
- Maximum diameter: 10 in. (250 mm)

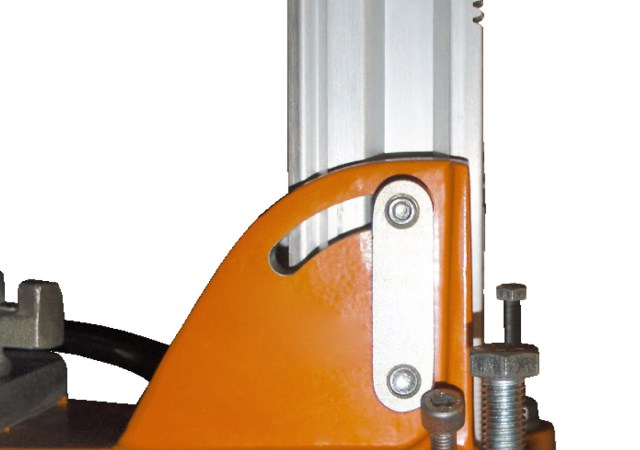

- Angle drilling device up to 45°
- Bubble levels for precise setup
- Left and right handed operation
- Laser pointer for accurate setup

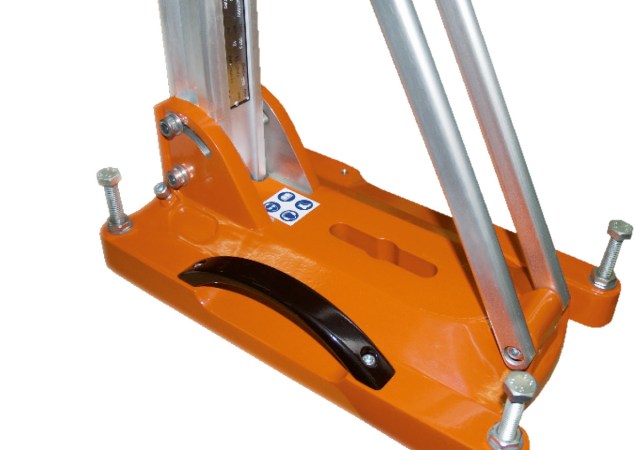

- Aluminium anchor-/vacuum base
Specifications
| DS250S | ||
| Max Diameter | STS Collar 8 in. (200 mm) | |
| Max Diameter | Motor Mount 10 in. (250 mm) | |
| Column | Aluminum | |
| Travel Length | 25.5 in. (650 mm) | |
| Max Angle | 45° | |
| Base | anchor-/vacuum | |
| Carriage | Sliding guide | |
| Dimensions | 18×11.5×37.5 in. (450×290×950 mm) | |
| Order number | STS Collar 0295 125 9010 | |
| Order number | Motor Mount 0295 125 9020 |
