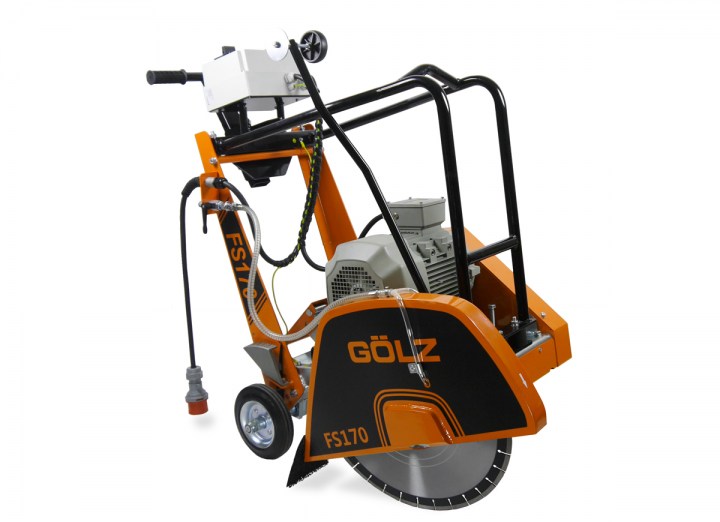

FS 170 E
Robust and solid Push Saw with hot galvanized chassis for durable operation in the construction and rental business with ergonomical comfort to the operator by Anti-Vibration-System and height adjustable handles.
FS 170 E with Electric motor – Blade-ø 500mm – Cutting depth 190 mm

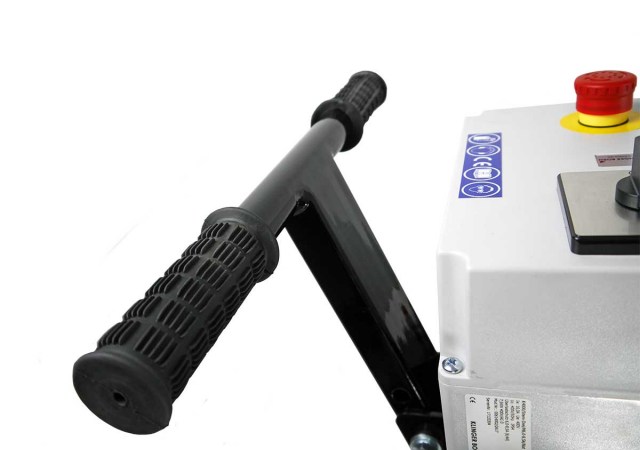

- Anti-Vibration system, height adjustable handles
- Cutting depth adjustment by foot pedal for operators safety

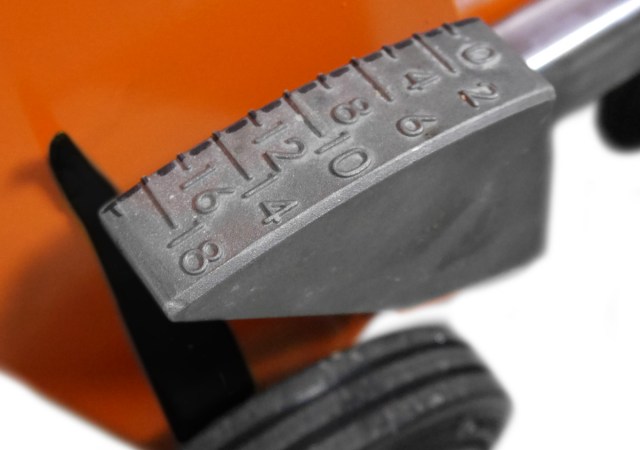

- Cutting depth indicator
- Front cutting guide
- Parking break

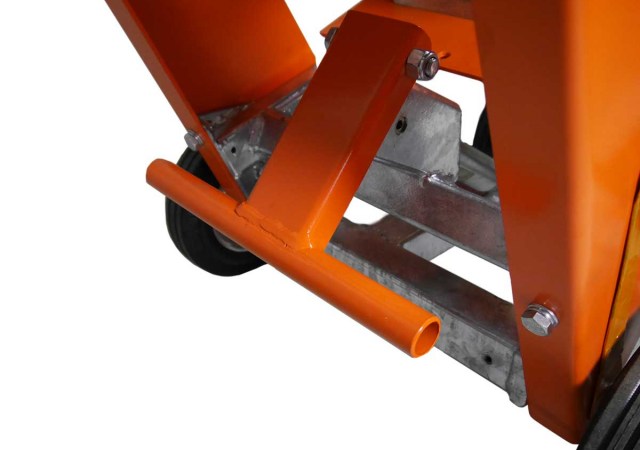

- Safety frame with integrated lifting frame

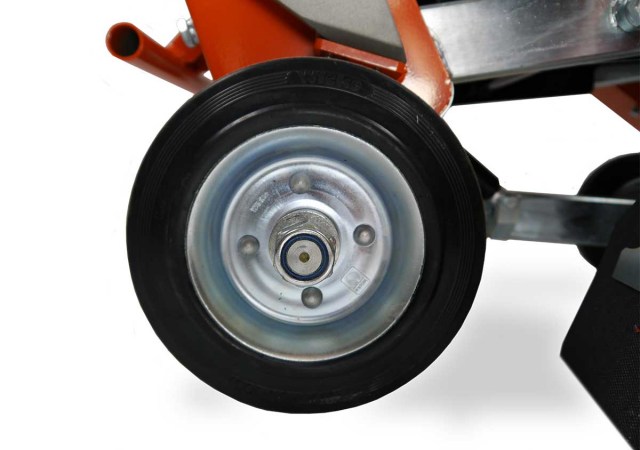

- Big wheels for good chassis clearance
- Durable V-belt drive
Specification
| Max Cutting depth | 190 mm |
| Blade diameter | 500 mm |
| Shaft size | 25,4 mm |

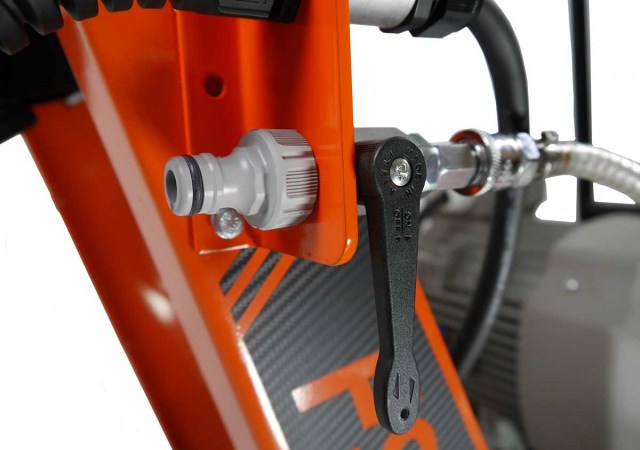

| Water-connection | Gardena |
| Engine power (net power) | 5,5 kW 400 Volt |
| Shaft speed | 2.300 min-1 |
| Feed motion | Push |
| Cutting depth adjustment | Footpedal & Pneumatic Spring |
| Power transmission | V-Belt Kit |
| Hand Arm Vibrations | 2,2 m/s2 |
| Dimensions: (LxWxH) | 1.210 × 630 × 1.165 mm |
| Weight | 136 kg |
| Order-No. | 0282 170 1300 |
Diamond Blades:
Diamond Blades for Asphalt and Concrete, please check our Diamond Tools catalogue.
