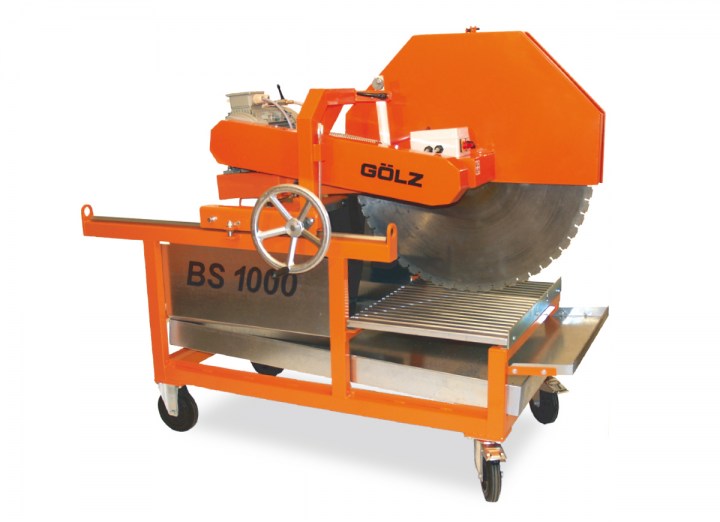

BS1000
Powerful block saw for the long term use on the jobsite
Cutting length 24 in. (600 mm)
Blade-Ø 40 in. (1.000 mm)
Cutting length 16.5 in. (420 mm)
- Torsion free chassis with 4 crane eyes

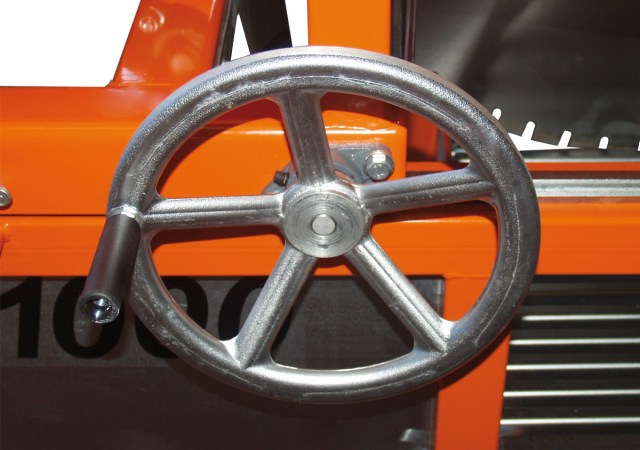

- Cutting depth adjustable by manual lever

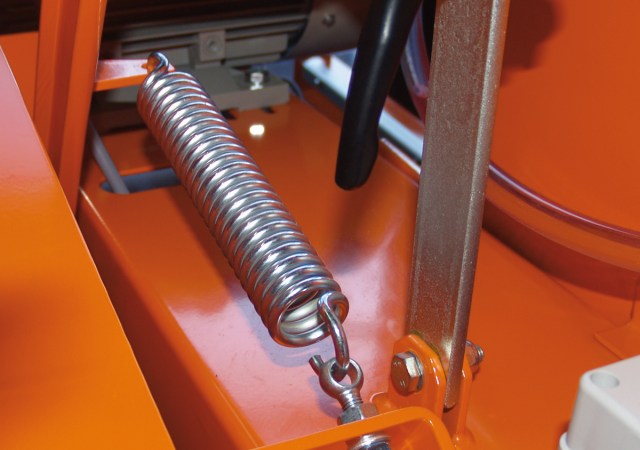

- Sprung cutting head for cutting depth adjustment • Professional water tube
- Adjustable angle stop
- Cutting head with steel bearing rollers

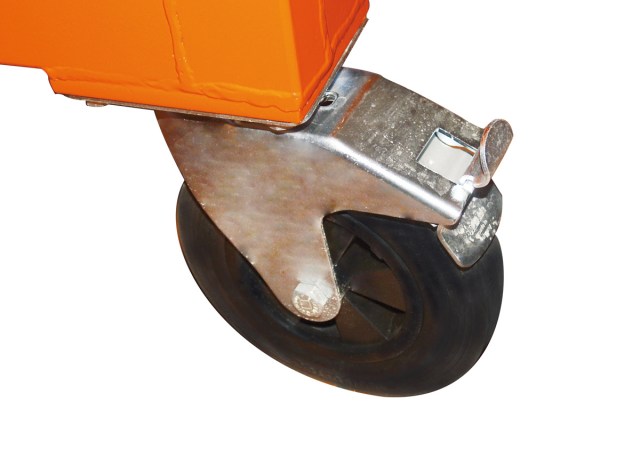

- 4 transport wheels, 2 with parking break

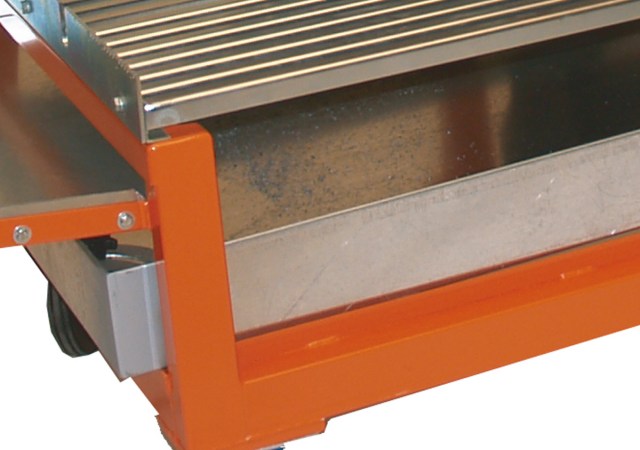

- Removable water tub, zinc coated
Specifications
| GÖLZ BS1000 | |

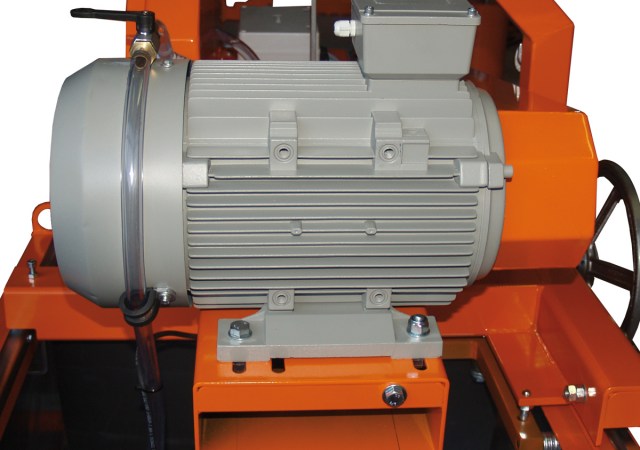

| Motor | 3-phase, 400 V, 50 Hz, 32 A, IP 54 |
| Power | 7,5 kW (10 PS) |
| Max. cutting depth | 16.5 in. (420 mm) |

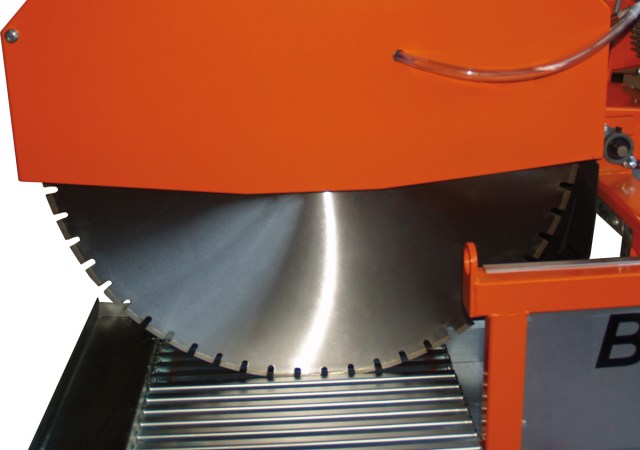

| Max. blade size | 40 in. (1.000 mm) |
| Arbor hole | 60 mm |
| Cutting length | 24 in. (600 mm) |
| Shaft speed | 990 min-1 |
| 45° miter-cut | No |
| Water pump | electric |
| Blade flange size ø | 6.25 in. (160 mm) |
| Transport wheels | yes |
| Cutting table (LxW) | 24×33 in. (610 × 840 mm) |
| Dimensions: (LxWxH) | 78.75×43.25×61 in. (2000×1100×1550 mm) |
| Weight | 618 lbs (280 kg) |
| Order-Nr. | 0282 900 2020 |
| Accessories | |
| Spare water pump | 0282 650 0179 |
