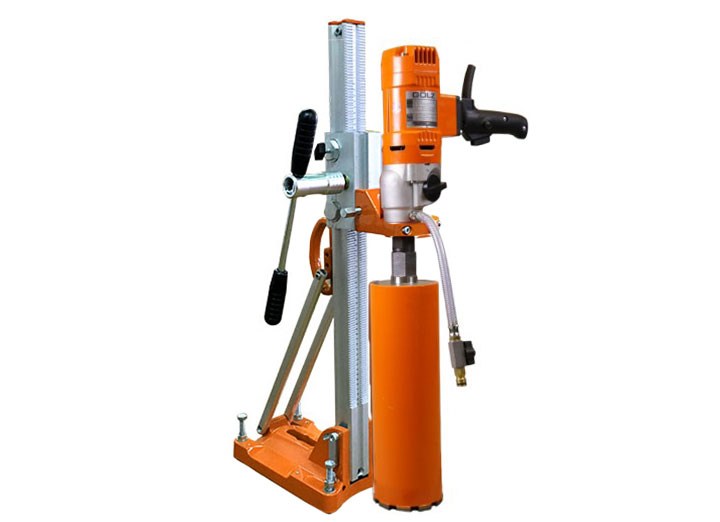

DS160S & FB23P Core Rig Setup
Lightweight Hand Held Core Drill with Stand Max Diameter 6 1/4"
Lightweight aluminum drill stand with anchor-/vacuum base
Lightweight and solid drill stand: 26.5lbs (12 kg)
Travel length: 20 in. (490 mm)
Maximum diameter: 6 in. (162 mm)
Angle drilling device up to 45°
Bubble levels for precise setup
Left and right handed operation
Aluminum anchor-/vacuum base
| Motor | FB23P |
| Voltage | 110V, 20A, 50-60 Hz |
| Power (Input/Output) | 2,7 kW (1,75 kW) |
| RPM | 520/1400 min-1 |
| Drilling Diameter Handheld | 7/8 in. (20 mm) – 4 in. (110 mm) |
| Drilling Diameter Stand | 7/8 in. (20 mm) – 8 in. (200 mm) |
| Dril bit connection | 1¼ in. UNC |
| Safety | PRCD |
| Weight | 13 lbs (5,9 kg) |
