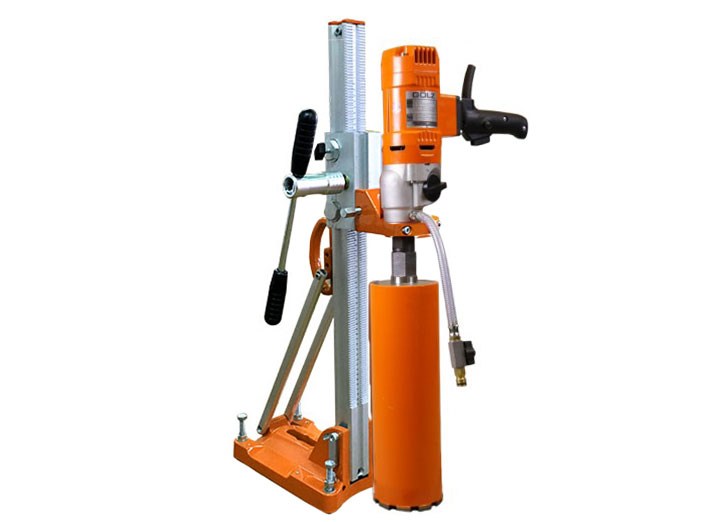

DS250S & FB23P Core Rig Setup
Lightweight aluminium drill stand with an anchor-/vacuum base
- Lightweight and solid drill stand: 26.5lbs (12 kg)
- Travel length: 26 in. (650 mm)
- Maximum diameter: 10 in. (250 mm)
- Angle drilling device up to 45°
- Bubble levels for precise setup
- Left and right handed operation
- Laser pointer for accurate setup
- Aluminium anchor-/vacuum base
| Motor | FB23P |
| Voltage | 110V, 20A, 50-60 Hz |
| Power (Input/Output) | 2,7 kW (1,75 kW) |
| RPM | 520/1400 min-1 |
| Drilling Diameter Handheld | 7/8 in. (20 mm) – 4 in. (110 mm) |
| Drilling Diameter Stand | 7/8 in. (20 mm) – 8 in. (200 mm) |
| Dril bit connection | 1¼ in. UNC |
| Safety | PRCD |
| Weight | 13 lbs (5,9 kg) |
