KB130

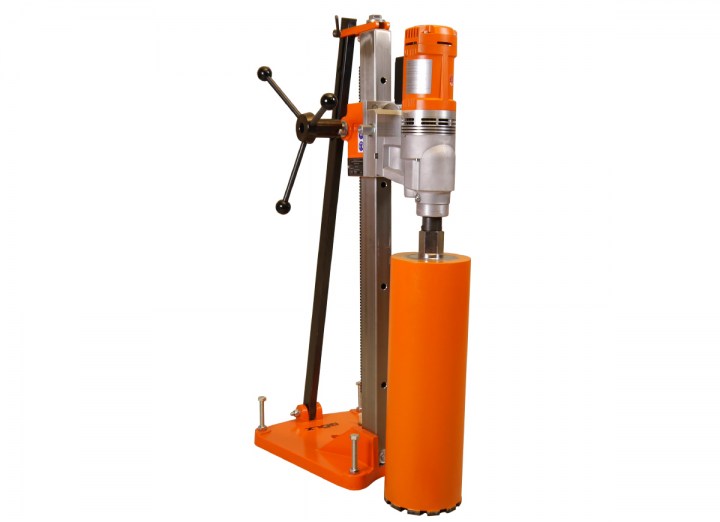

The established and proven Core Drill Set for the construction site up to ø 10 in. (250 mm) holes
_______

Robust and ridgid stainless steel column with brass sliding guided carriage, quick motor disconnect system (STS), angle device and anchor-/vacuum base.

  • Stainless steel drill stand, 38 lbs (17 kg)
  • Travel length: 24 in. (600 mm)
  • Maximum diameter: 10 in. (250 mm)

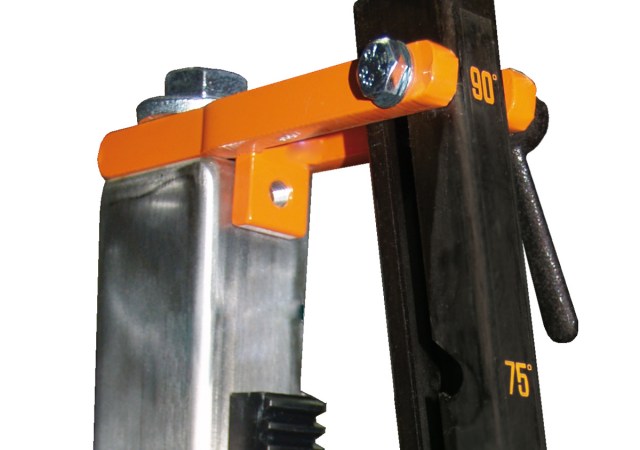

  • Angle drilling device up to 45°

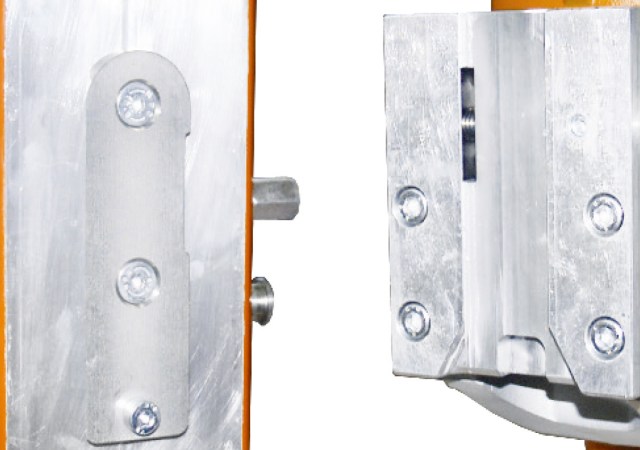

  • Motor quick release system (STS)
  • Left and right handed operation

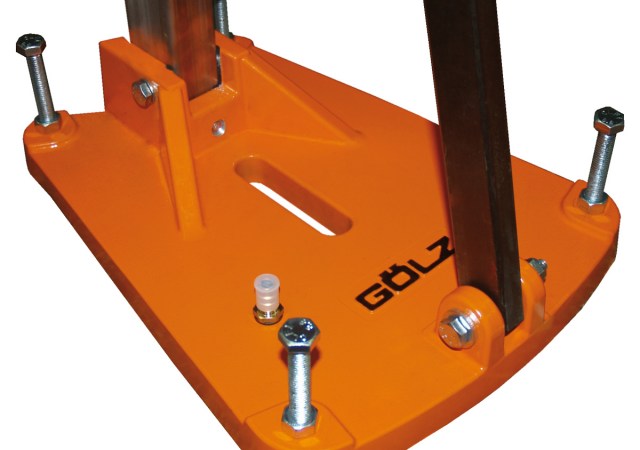

  • Aluminium anchor-/vacuum base

Specifications
KB130
Max Diameter Motor Mount 10 in. (250 mm)
Column Stainless Steel
Travel Length 24 in. (600 mm)
Max Angle 45°

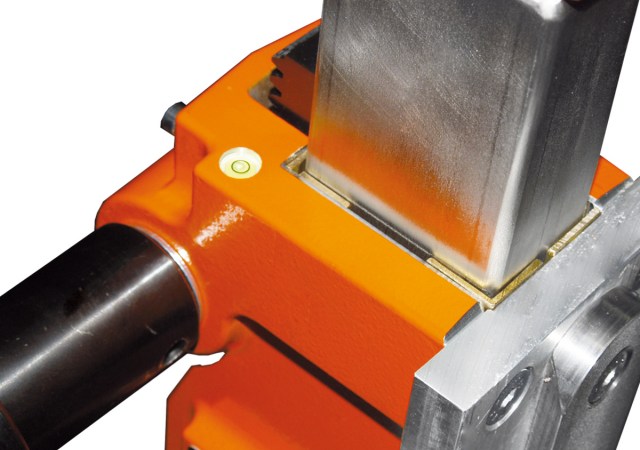

Carriage Brass Sliding
Dimensions 18×11.5×37.5 in. (450×290×950 mm)
Order number anchor-/vacuum base 0295 130 6002
Order number anchor base 0295 130 6022
