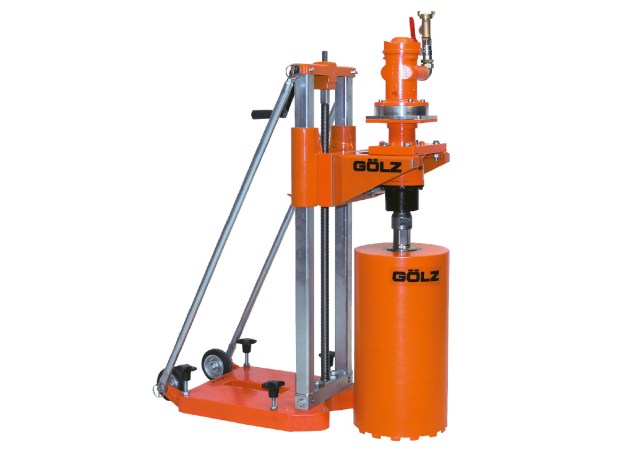

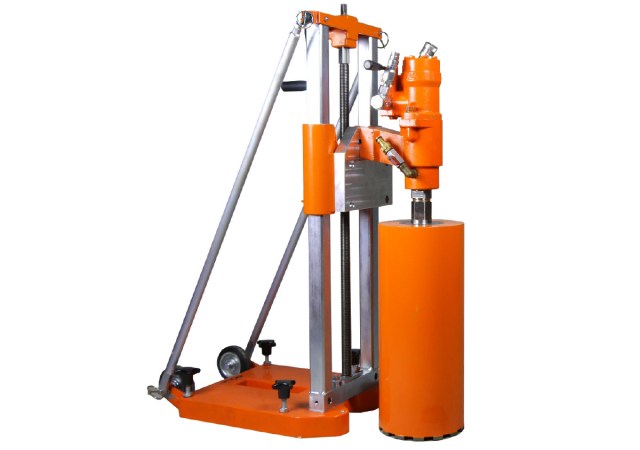

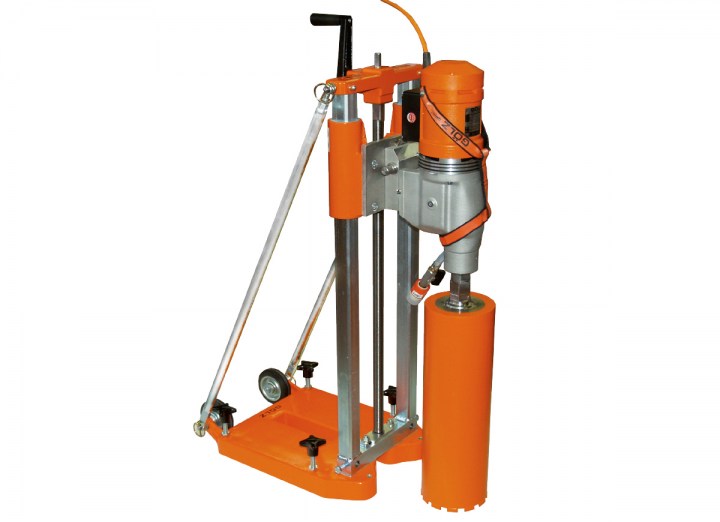

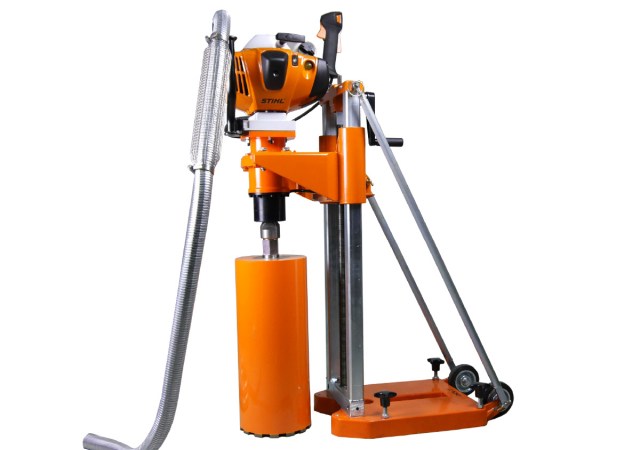

KB150
Multipurpose core drilling machine for the sewer, road and building industry
Various motors and engines available
Electric motors, Gasoline engine, Air motor and Hydraulic motor
Various operating conditions
Coring in walls, floors, roads, sewer pipes
Various fastening options
Anchors, vacuum, pipe bases, road bases

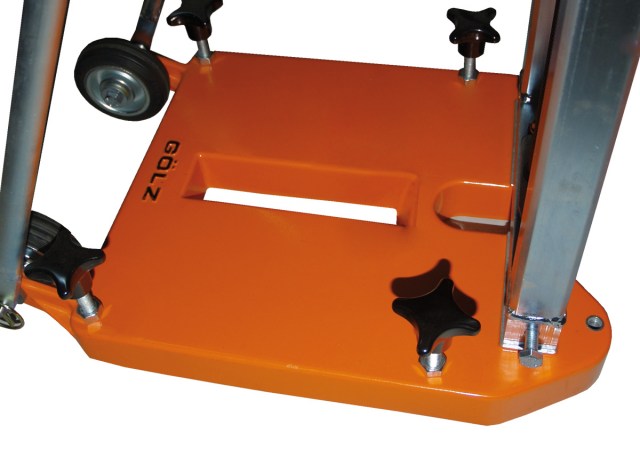

- Basic version for walls and floors with anchor base
- Travel length: 25 in. (630 mm)

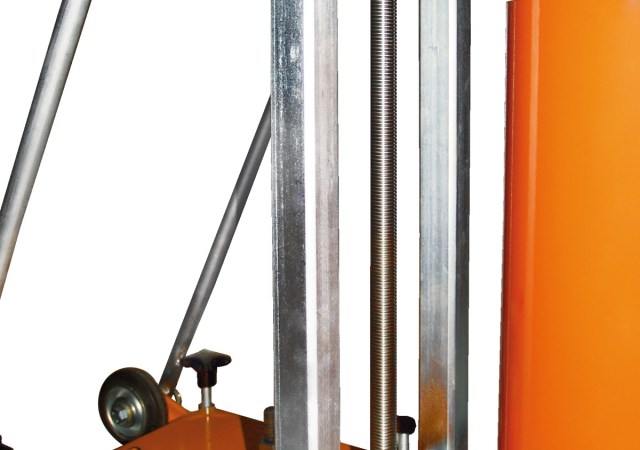

- Double column with fine feeding carriage

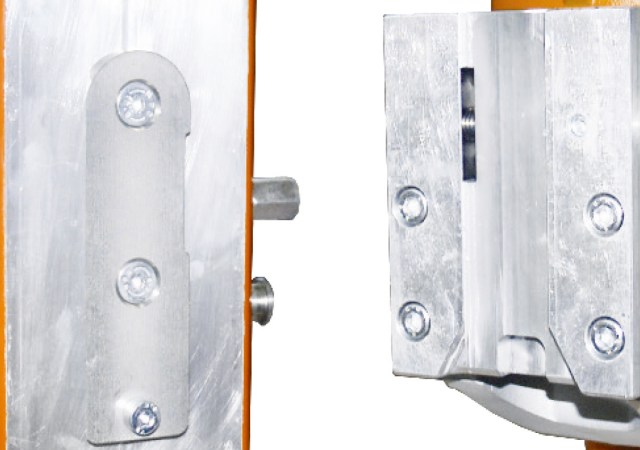

- Motor quick release system (STS)
- Backside support

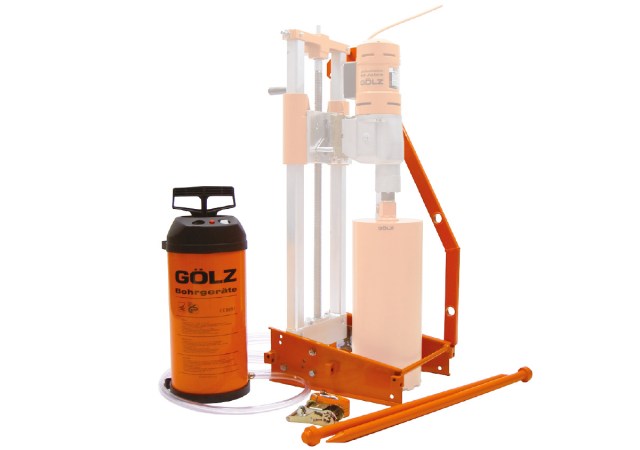

- Tool- and fastening kit included
- Drill stand, weight 60 lbs (27 kg)
Technical specifications
| KB150 – Electric | KB150 – Gas | KB150 – Air | |
| Motor | BBM33L-extra | STIHL 2-Takt-Motor | LZL15 |
| Voltage | 230V, 50-60 Hz | — | —- |
| Oil-/Air consumption | —- | —- | 3,3 m³/min |
| Oil-/Air pressure | —- | —- | 6-7 bar |
| Power | 3,3 kW (2,4 kW) | 2,8 kW (3,8 Ps) | |
| RPM | 180/430/750 min-1 | 300 min-1 | 280/600 min-1 |
| Drilling Diameter | Ø 13 in. (330 mm) | Ø 12 in. (300 mm) | Ø 12 in. (300 mm) |
| Drill bit connection | 1¼” UNC | 1¼” UNC | 1¼” UNC |
| Water connection | Gardena | Gardena | Gardena |
| Order number | 0295 150 6010 | 0295 153 2000 | 0295 152 6601 6 in. (150 mm) |
| 0295 152 3601 12 in. (300 mm) |
