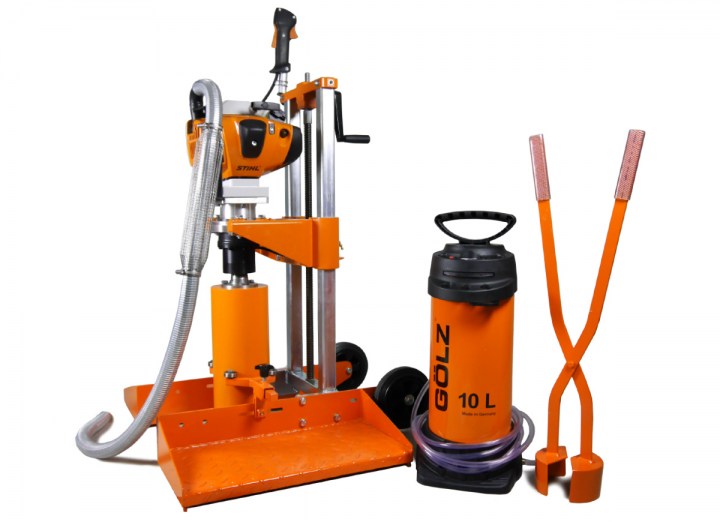

KB200

Specially designed for taking core samples from roads or installing barrier posts and different kind of bollards
_______

Due to it´s compact design and the complete package, the KB 200 is easy to use for:

  • Core sampling in asphalt and concrete pavements
  • Coring out of gate valves
  • Coring to place barrier posts or different types of bollards
  • Coring for airfield lightning
  • Coring to place crash barriers or fences
  • Travel length: 24 in. (600 mm)

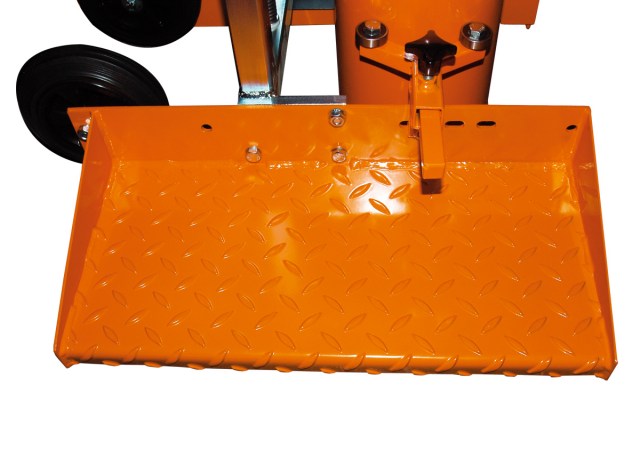

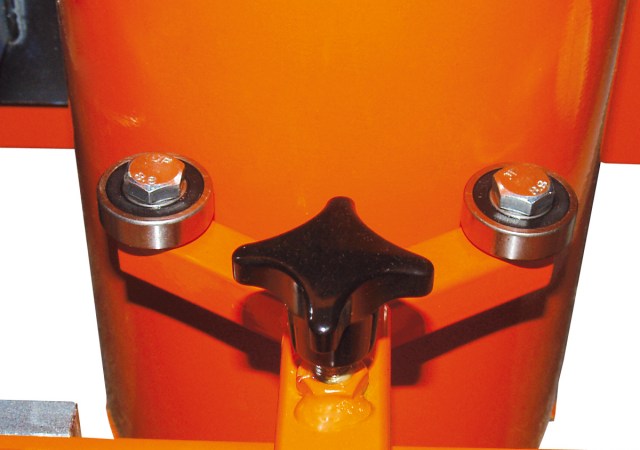

  • Twin column drill stand with road bases and roller guides
  • Pressurized 10 1/2 qt (10 liter) water tank
  • Exhaust gas hose, 158 in. (4 m)
  • Tool- and fastening kit included
  • Total weight with Stihl engine: 117 lbs (53 kg)

The KB200 drill stand is also available with electric- or air motor.

Specifications
US Standard Metric
Motor STIHL 2-stroke-engine
Power 3.8 hp 2,8 kW (3,8 PS)
RPM 600 rpm
Drilling Diameter Ø 4.25 in.- 11 in. 110 – 280 mm
Drill bit connection 1¼” UNC
Water connection Gardena
Order number 0295 202 2000
