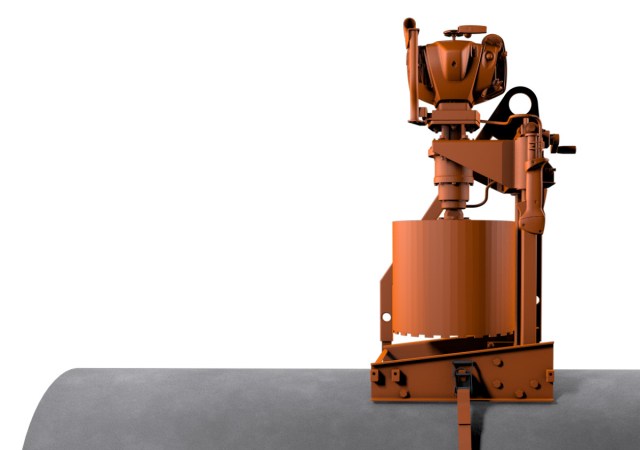

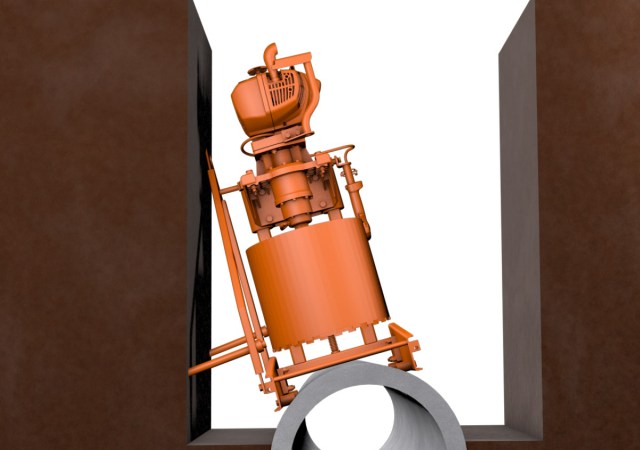

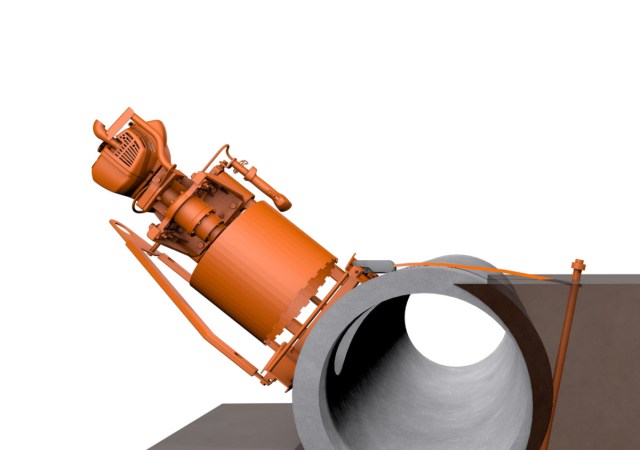

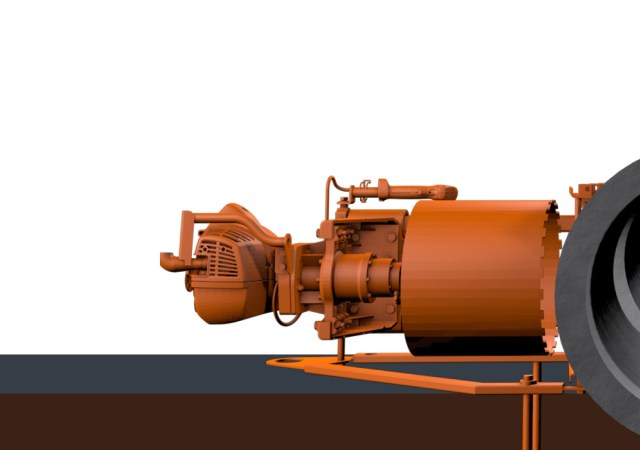

The original and most modern solution in pipe and sewage drilling for house connections and surface water with GÖLZ KB 350 and Stihl-2-stroke-engine.
- Most advanced design
- Top class components by magnesium high-pressure die casting compact and leightweight design, approved to operate under constricted space
- Proven STIHL-Engine technology combined with GÖLZ Equipment concept
- esure highest reliabiltiy, efficiency and safety in operation
- Independant operation- where no public power supply is available.

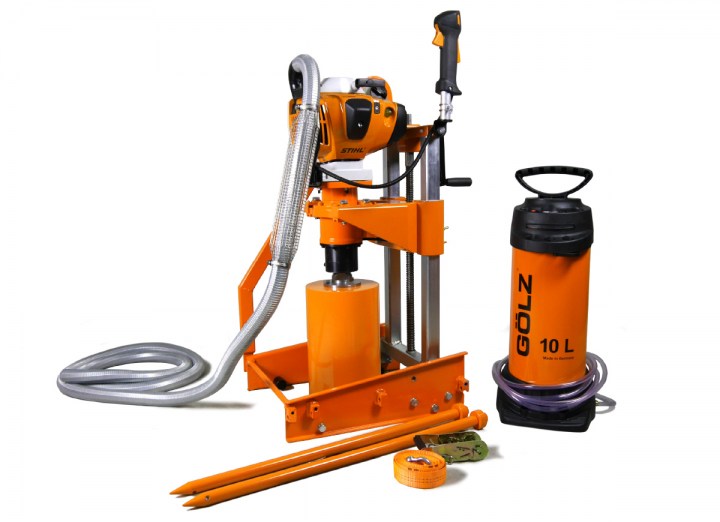

Gölz KB 350 standard package
- Drill stand, travel length 18 in. (450 mm),
- Pipe base, self centering
- Ground frame with (2) ground fixing spikes
- Fastening strap (2), 39 3/8 in. (1m) with clamping ratchet for fixing directly on sewage pipe
- STIHL 2-stroke-engine, 2,8 kW (3,8 PS)
- Exhaust gas hose, 157 in. (4m.)
- Gearbox with water swivel, 300 rpm.
- Drilling diameter: max ø 14 in. (354 mm.)
- Drill bit connection: 1¼” UNC
- Pressurized 10.5 qt. (10 liter) water tank
- Total weight with Stihl engine: 99 lbs. (45 kg.)
The KB350 drill stand is available with petrol-. hydraulic-, air- or electric motor.
