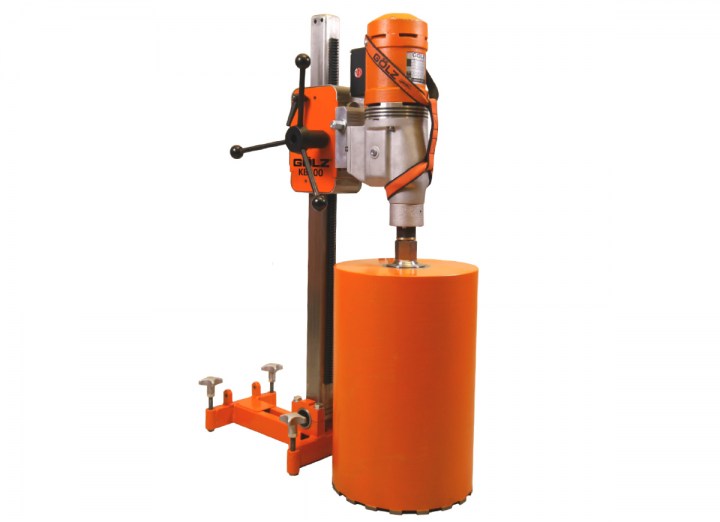

KB400
Heavy User core drilling machine with combined slider/roller carriage, 2 speed feeding and angle device up to ø 16 in. (400 mm)
Extended columns up to 78.75 in. (2000 mm) length as an option
- Travel length: 24 in. (600 mm)

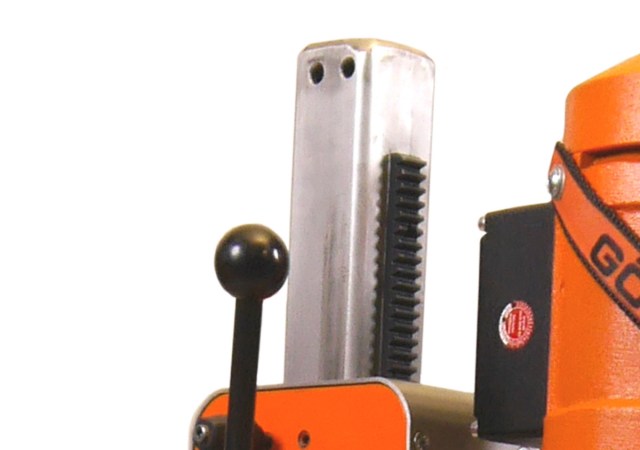

- Stainless steel column with galvanised tooth rack

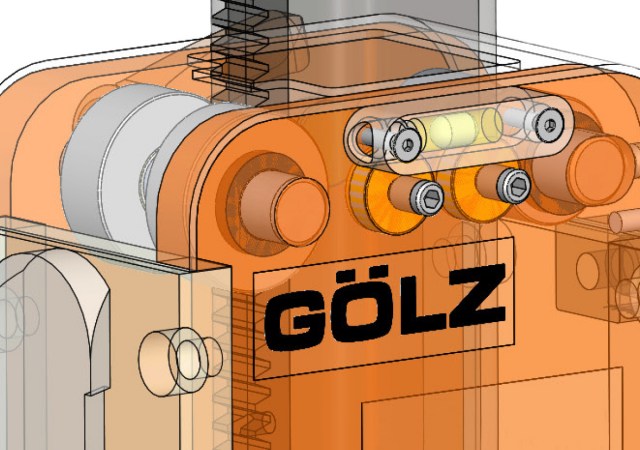

- combined slider / roller carriage
- Motor quick release system (STS)
- 2 -speed feeding by planetary gear (1:4 reduction)
- Left and right handed operation

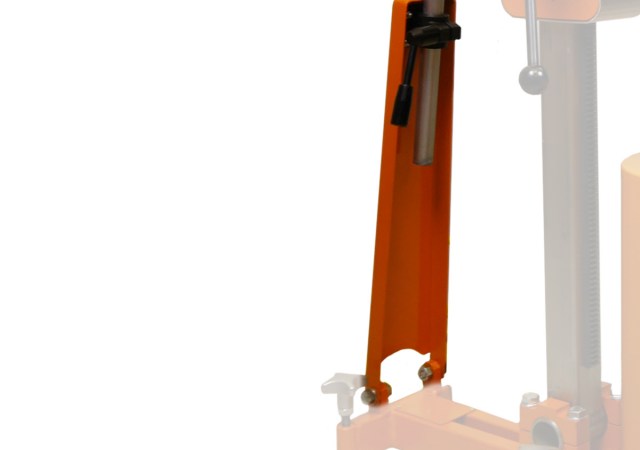

- Angle drilling device 60° positive/negative
- Tool- and fastening kit included
- Drill stand, weight 39 lbs (17,5 kg)
Specifications
| KB400 – BBM33L | KB400 – DX5L | |
| Motor | BBM33L-extra | Dolphin DX5L |
| Voltage | 230V, 50-60 Hz | 400V, 16 A |
| Power | 3,3 kW (2,4 kW) | 5,2 kW (3,7 kW) |
| RPMl | 180/430/750 min-1 | 120/280/440 min-1 |
| Drilling Diameter | Ø 16 in. (400 mm) | Ø 16 in. (400 mm) |
| Drill bit connection | 1¼” UNC | 1¼” UNC |
| Water connection | Gardena | Gardena |
| Order number | 0295 401 6010 | 0295 401 6020 |
