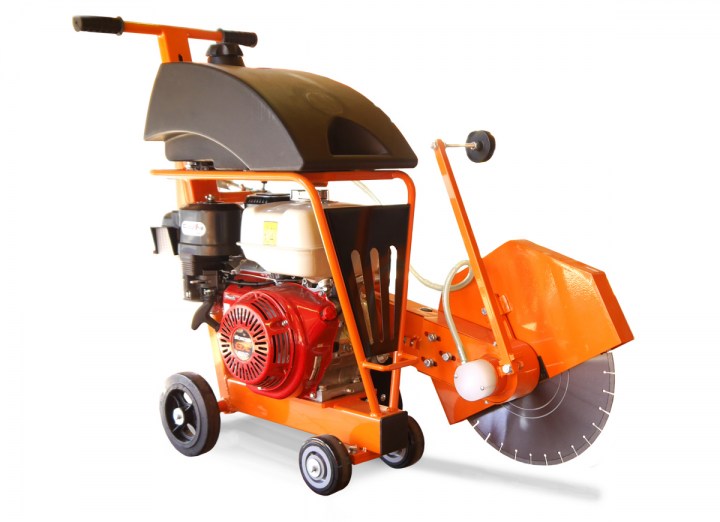

FS 17

Solid and stable Push Saw with pivoted sawing arm covers a wide range of sawing tasks in the construction business.

13 HP Honda gas enging – Blade-ø 450mm – Cutting depth 170 mm

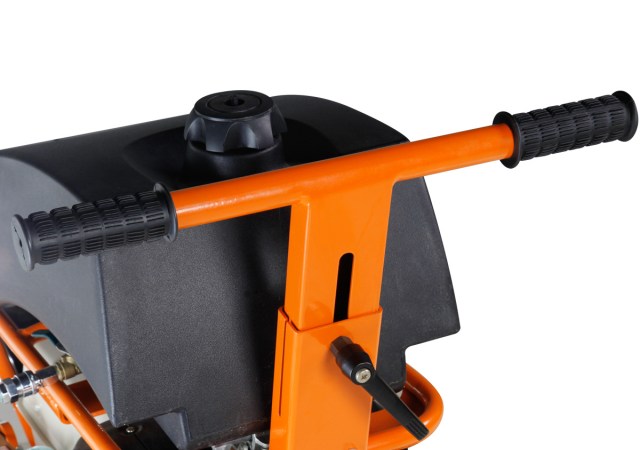

  • Adjustable handles for operators comfort

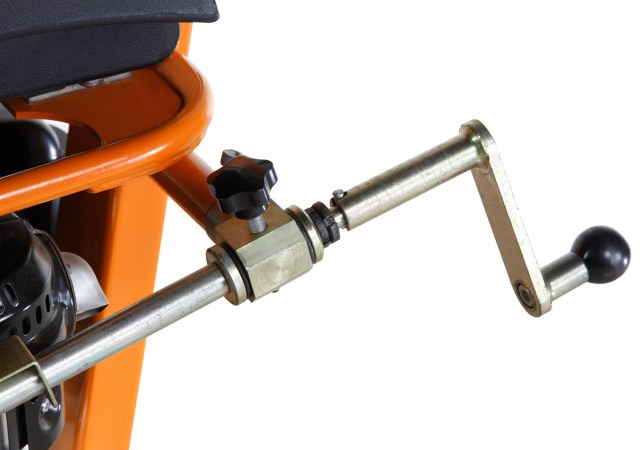

  • Cutting depth adjustment by handwheel
  • Cutting depth indicator

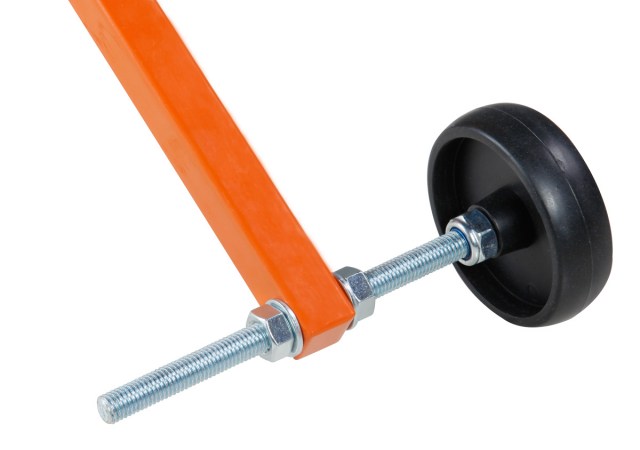

  • Front cutting guide
  • Parking break

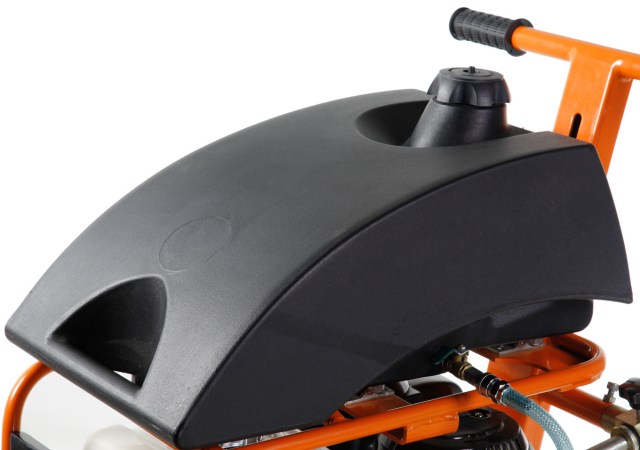

  • 30 Liter water tank, easy to fill

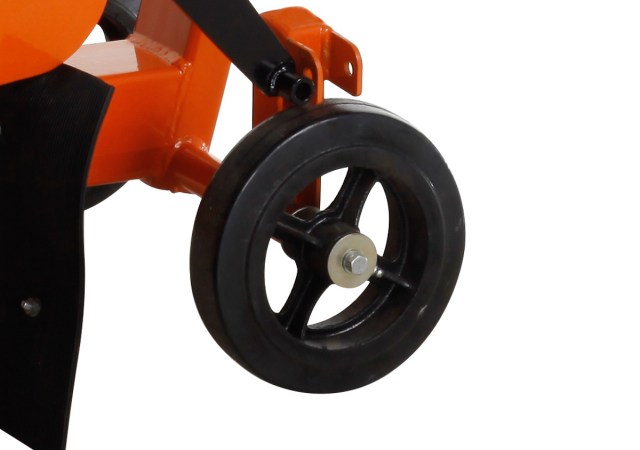

  • Big rear wheels for good chassis clearance

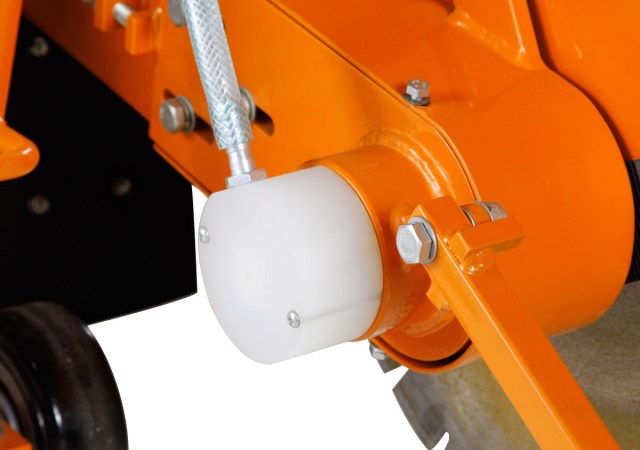

  • Water cooling through the blade shaft

Max Cutting depth 170 mm
Blade diameter 450 mm
Shaft size 25,4 mm
Water tank 30 Liter
Engine Honda GX390
Engine power (net power) 13HP/9,5kW (11,8HP/8,7kW)
Shaft speed 2.300 min-1
Feed motion Push
Cutting depth adjustment Handwheel and Pivot Arm
Power transmission V-Belt Kit
Hand Arm Vibrations
Dimensions (LxWxH) 1025×572×1060 mm
Weight 112 kg
Order-No. 0282 017 1000
