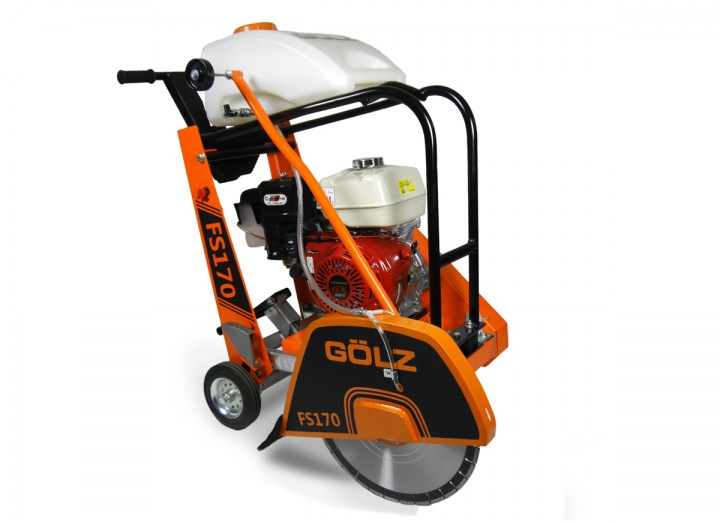

FS 170
Robust and solid Push Saw with hot galvanized chassis for durable operation in the construction and rental business with ergonomical comfort to the operator by Anti-Vibration-System and height adjustable handles.
FS 170 with Gasoline, Diesel or Electric motor – Blade-ø 20 in. (500mm) – Cutting depth 7 1/2 in. (190 mm)

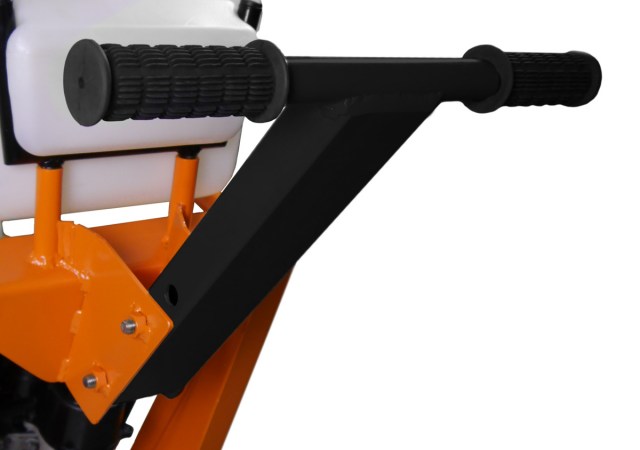

- Anti-Vibration system, height adjustable handles

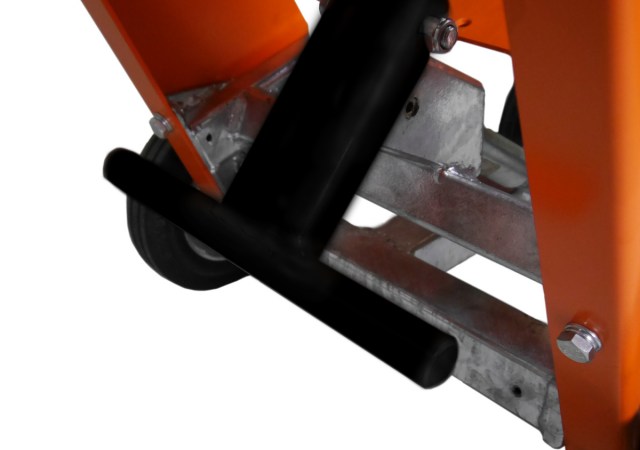

- Cutting depth adjustment by foot pedal for operators safety
- Cutting depth indicator
- Front cutting guide

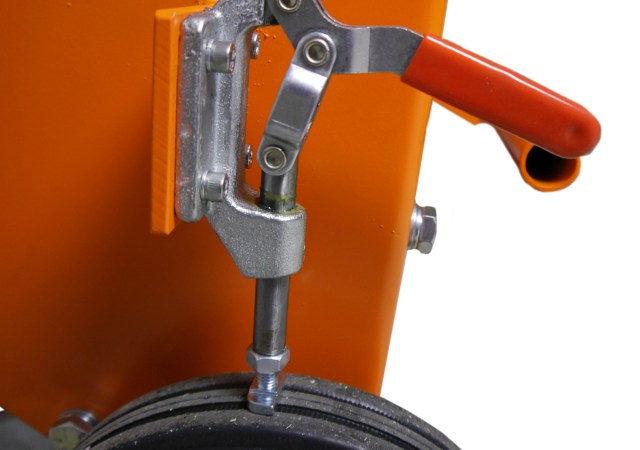

- Parking break
- Safety frame with integrated lifting frame

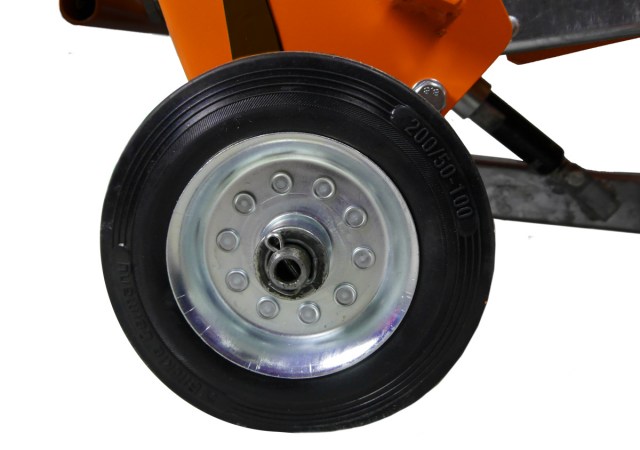

- Big wheels for good chassis clearance
- Durable V-belt drive
- Maintenance free design (hot dipped galvanized chassis)
Available with Honda 13HP or Yanmar 10HP diesel engine or 400V, 5,5 KW 3-phase electric motor
Specification
US Standard | Metric | |
Max Cutting depth | 7 1/2 in. | 190 mm |
Blade diameter | 20 in. | 500 mm |
Shaft size | 1 in. | 25,4 mm |

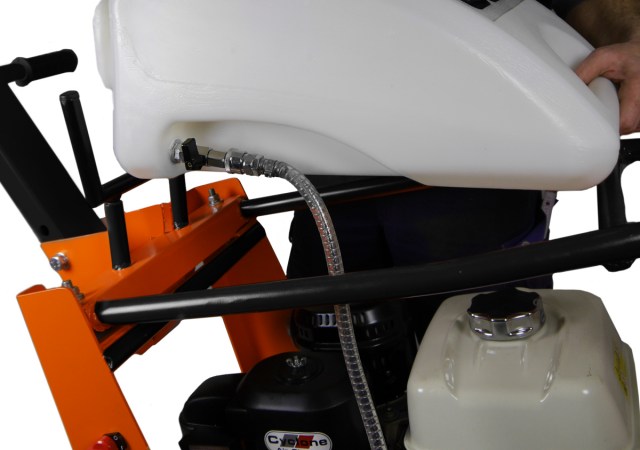

Water tank | 26 1/2 qt | 25 Liter |
Engine | Honda GX390 | |
Engine power (net power) | 13HP/9,5kW (11,8HP/8,7kW) | |
Shaft speed | 2.300 rpm | |
Feed motion | Push | |
Cutting depth adjustment | Footpedal & Pneumatic Spring | |
Power transmission | V-Belt Kit | |
Hand Arm Vibrations | 4,5 m/s2 | |
Dimensions: (LxWxH) | 48 in. x 24 in. x 46 in. | 1.210 × 630 × 1.165 mm |
Weight | 265 lbs. | 120 kg |
Order-No. | 0282 170 1000 |
Available with Honda 13HP or Yanmar 10HP diesel engine or 400V, 5,5kW 3-phase electric motor.
Diamond Blades:
Diamond Blades for Asphalt and Concrete, please check our Diamond Tools catalogue.
