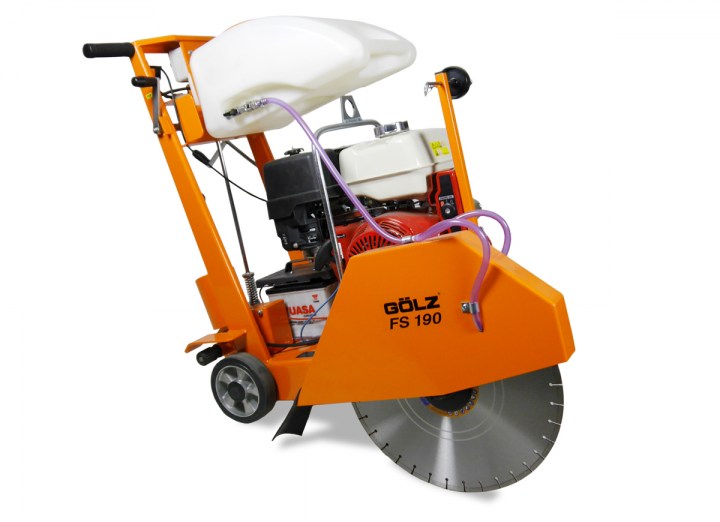

FS 190

Self propelled Concrete and Asphalt Saw - electrically driven - The powerful and compact solution for medium-large sawing jobs in asphalt and concrete roadworks

13 HP Honda gas engine – Blade-ø 500mm – Cutting depth 190 mm

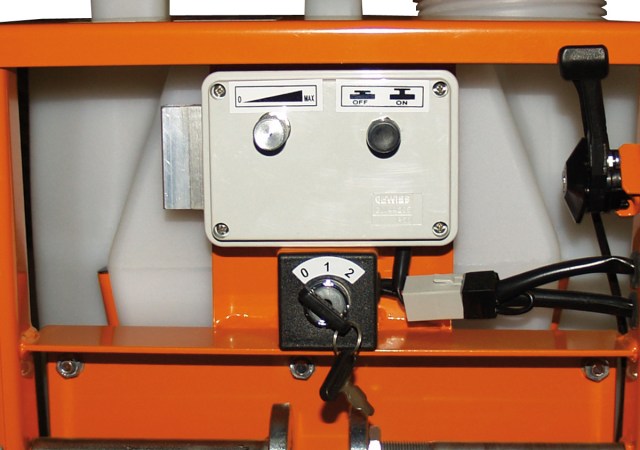

  • Electric Start, Battery, Alternator
  • Cutting depth adjustment by handwheel
  • Cutting depth indicator

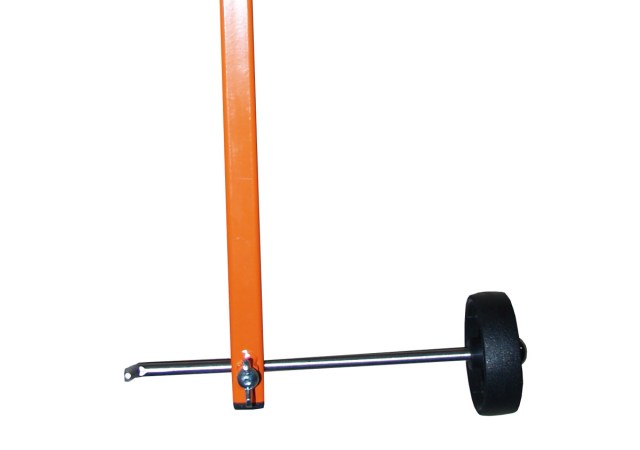

  • Front cutting guide

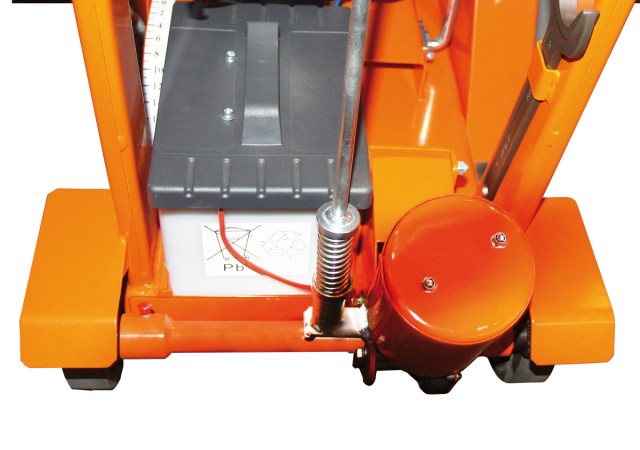

  • Electric Drive, speed adjustable, E-drive detachable

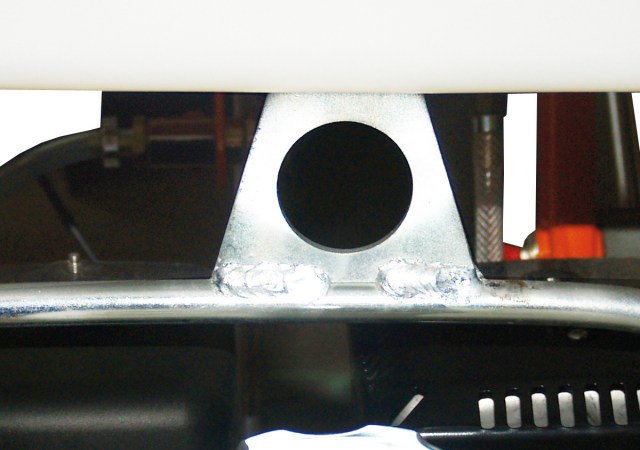

  • Lifting eye

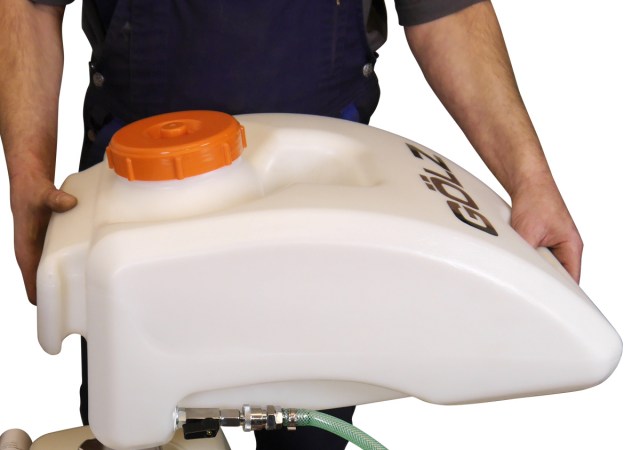

  • 25 Liter water tank, easy to fill

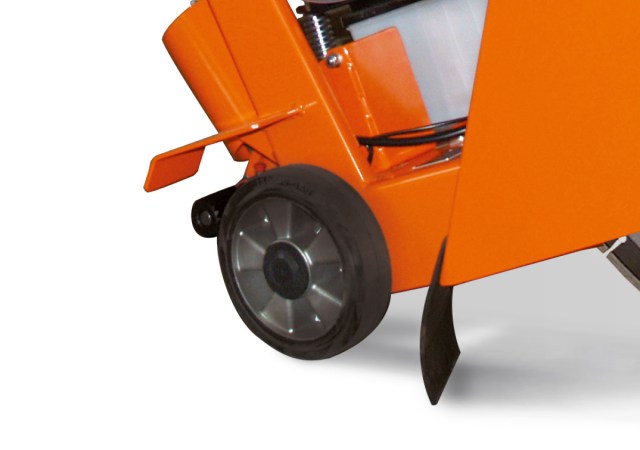

  • Big rear wheels for good chassis clearance

Max Cutting depth 190 mm

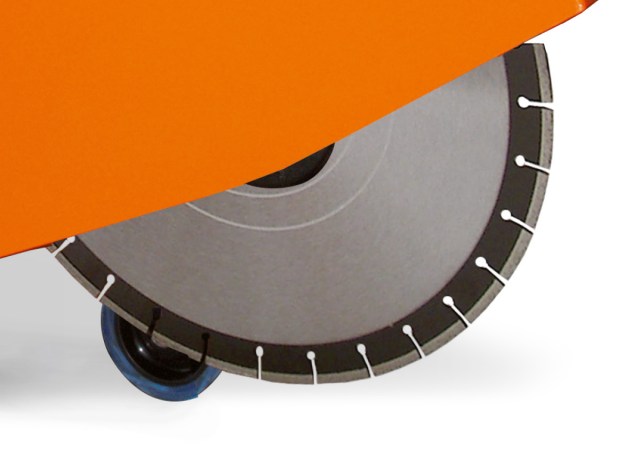

Blade diameter 500 mm
Shaft size 25,4 mm
Water tank 25 Liter
Engine Honda GX390
Engine power (net power) 13HP/9,5kW (11,8HP/8,7kW)
Shaft speed 2.100 min-1
Feed motion Electric
Cutting depth adjustment Handwheel
Power transmission
Hand Arm Vibrations
Dimensions (LxWxH) 1200×630×1010 mm
Weight 137 kg
Order-No. 0282 190 1000

Diamond Blades:
Diamond Blades for Asphalt and Concrete, please check our Diamond Tools catalogue.
