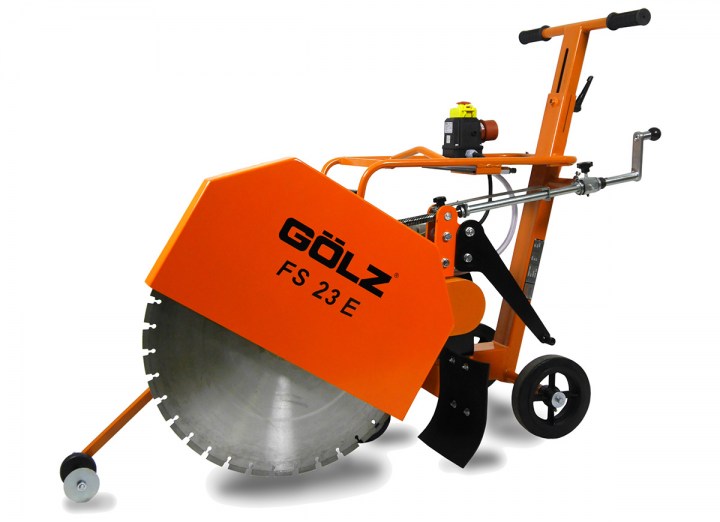

Compact electric Floor Saw with pivoted sawing arm for cutting in closed spaces.

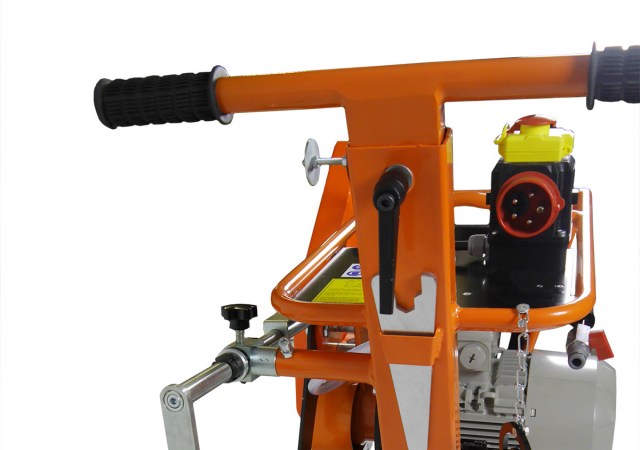

  • Adjustable handles for operators comfort
  • Cutting depth adjustment by handwheel
  • Cutting depth indicator

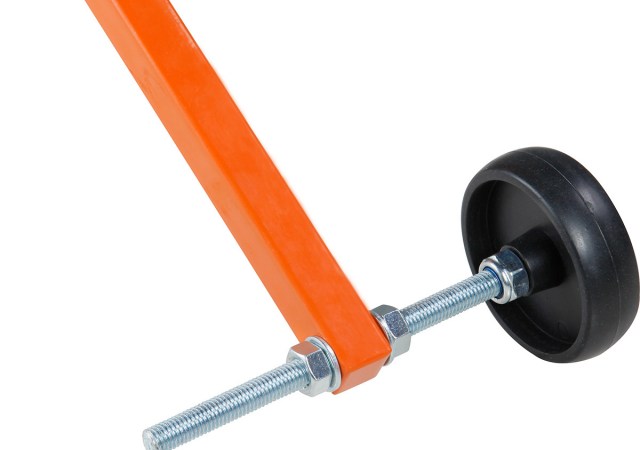

  • Front cutting guide
  • Parking break

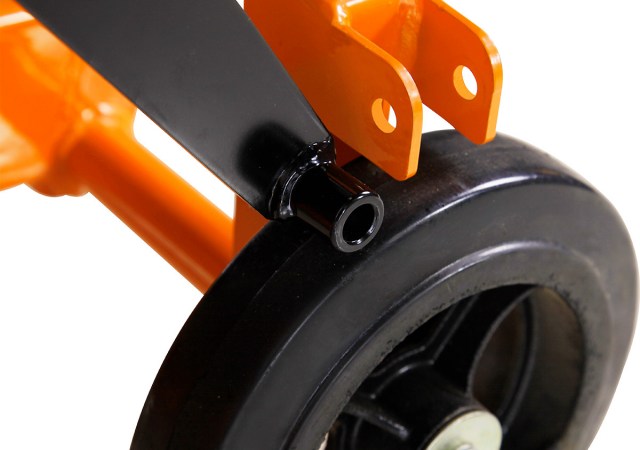

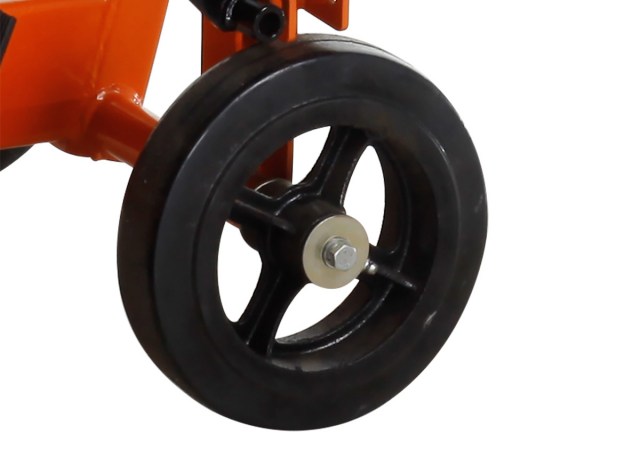

  • Big rear wheels for good chassis clearance

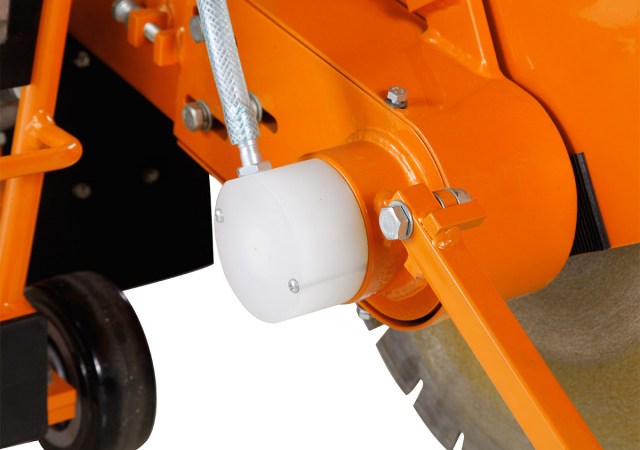

  • Water cooling through the blade shaft

Max Cutting depth 230 mm
Blade diameter 600 mm
Shaft size 25,4 mm
Water-connection external

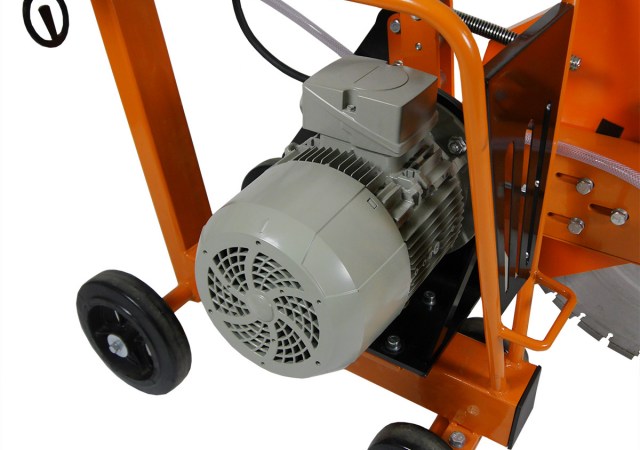

Engine 3-pase electric
Engine power 400 V; 4 kW; 50 Hz
Shaft speed 1.360 min-1
Feed motion Push
Cutting depth adjustment Handwheel
Power transmission V Belt Kit
Dimensions(LxWxH) 1070×530×890 mm
Weight 108 kg
Order number 0282 023 1000

Diamond Blades
Diamond Blades for Asphalt and Concrete, please check our Diamond Tools catalogue.
