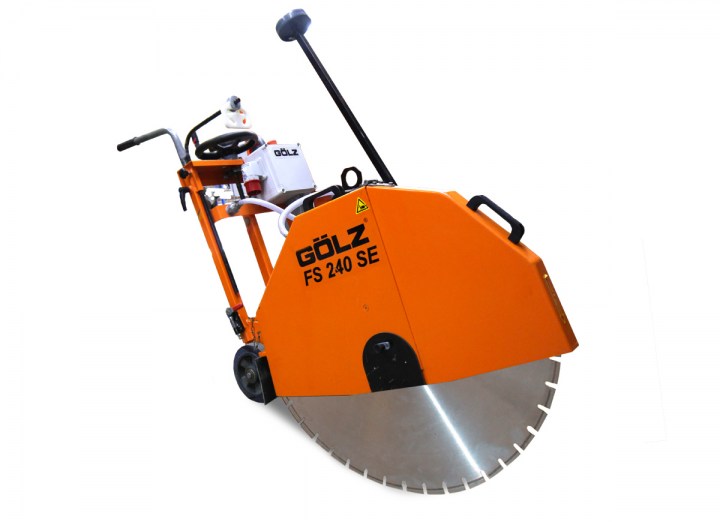

FS 240 SE

Powerful and stable Electric Floor Saw - ideal for cutting jobs inside buildings. Quickly to dismantle into 3 parts for easy transport to different floors

7,5 kW – 400 V 3-phase electric motor
Blade-Ø 800 mm

  • Cutting depth 330 mm
  • Compact and solid chassis, demountable into 3 parts.

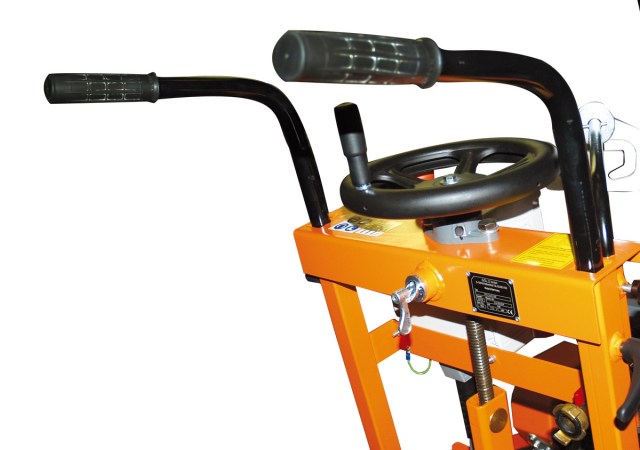

  • Adjustable handle bars for operators comfort
  • Continuously adjustable cutting depth

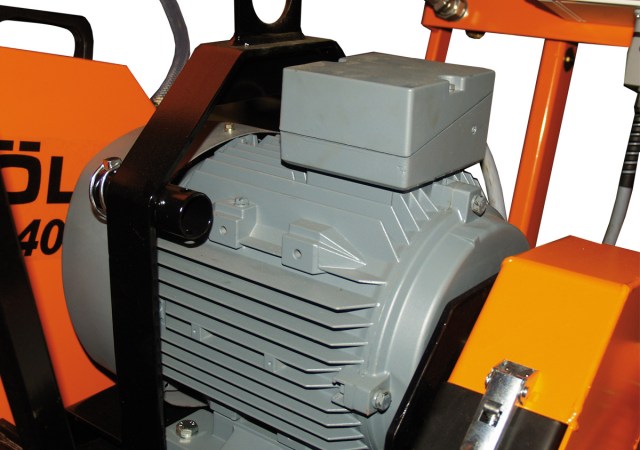

  • E-Motor easy to remove by quick mount plate
  • Right- and Lefthand blade operation
  • Divisible blade guard – can be raised for cutting against walls
  • GK water connection to connect to external water supply
  • Emergency stop

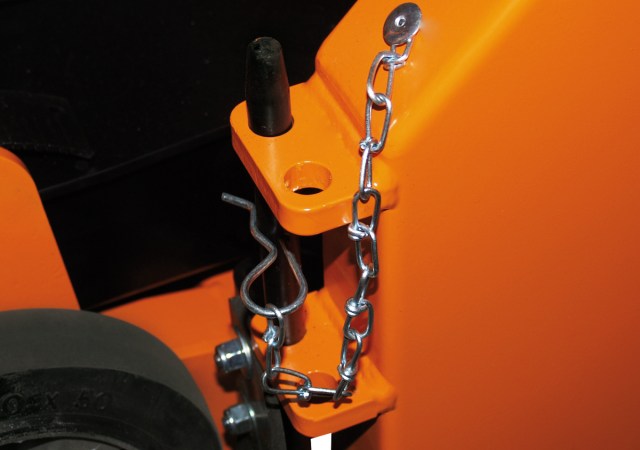

  • Parking break

Max Cutting depth 330 mm
Blade diameter 800 mm
Shaft size 25,4 mm
Water-connection GK-coupling
Motor 3-pase electric
Power 400V; 7,5kW; 16A
Shaft speed 1.500 min-1
Feed motion Push
Blade support system
Cutting depth adjustment Handwheel
Power transmission V-Belt Kit
Hand Arm Vibrations
Dimensions (LxWxH) 1300×720×950 mm
Weight 190 kg
Order-No. 0282 241 1010

Diamond Blades:
Diamond Blades for Asphalt and Concrete, please check our Diamond Tools catalogue.
