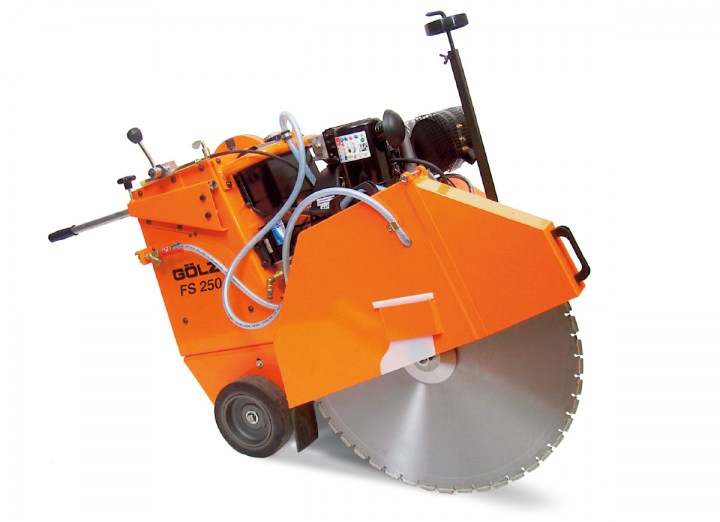

FS 250 B/D

Powerful, self-propelled walk behind saw with Honda gas engine or Hatz diesel engine. Robust and high performance for cutting Asphalt and Concrete
_______

25HP Honda Gas Engine/20HP Hatz Diesel Engine

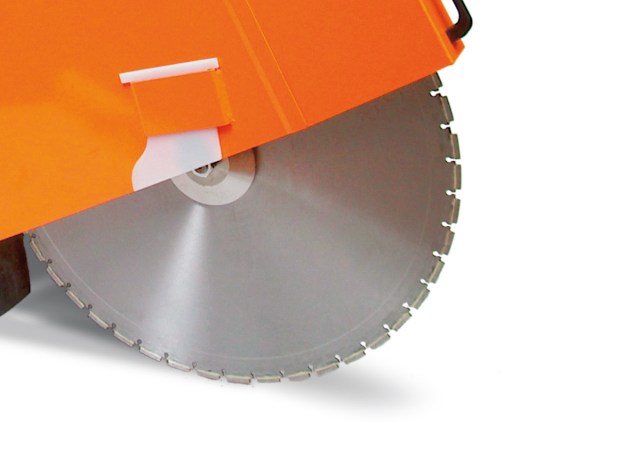

Blade Ø 800 mm, Cutting depth 310 mm

  • Adjustable handle bars for operators comfort

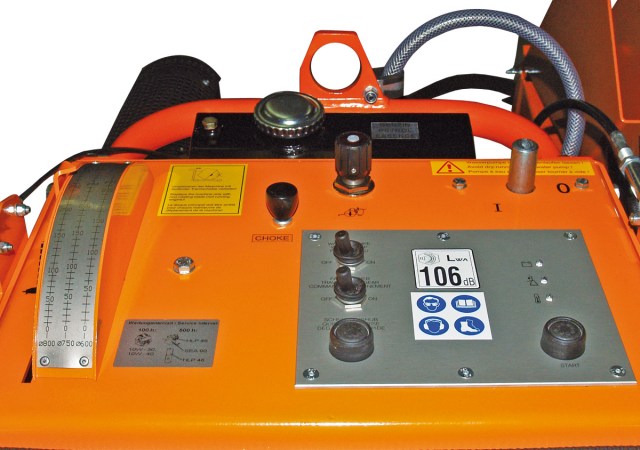

  • Control panel – user friendly
  • Continuously adjustable cutting depth
  • Cutting depth indicator
  • Blade depth control and rapid blade lift by electro-hydraulic
  • Self adjusting belt tensioner
  • Self-priming water pump
  • Right- and lefthand cutting

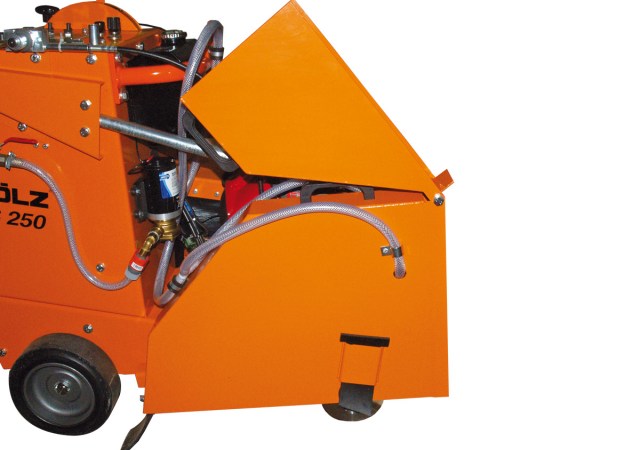

  • Divisible blade guard – can be raised for intersections
  • Electro-hydraulic drive, detachable. Saw can be moved without blade running.
  • Lifting eye
  • Well balanced chassis for best cutting performance

Specification
Gölz FS 250 B Gölz FS 250 D
Max Cutting depth 310 mm 310 mm
Blade diameter 800 mm 800 mm
Shaft size 25,4 mm 25,4 mm
Water-connection Integrated waterpump Integrated waterpump
Engine Honda GX690 Hatz 2G40
Engine power (net power) 25HP/18,5kW (22HP/16,5kW) 20HP/14,7kW
Shaft speed 1.600 min-1 1.450 min-1
Feed motion Electro-hydraulic drive Electro-hydraulic drive
Blade depth control Electro-hydraulic Electro-hydraulic
Cutting depth adjustment Continuosly adjustable Continuosly adjustable
V-Belt tension Self-adjusting belt tensioner Self-adjusting belt tensioner
Hand Arm Vibrations
Dimensions (LxWxH) 1340×880×1040 mm 1340×880×1040 mm
Weight 285 kg 346 kg
Order-No. 0282 250 4506 0282 250 4510
