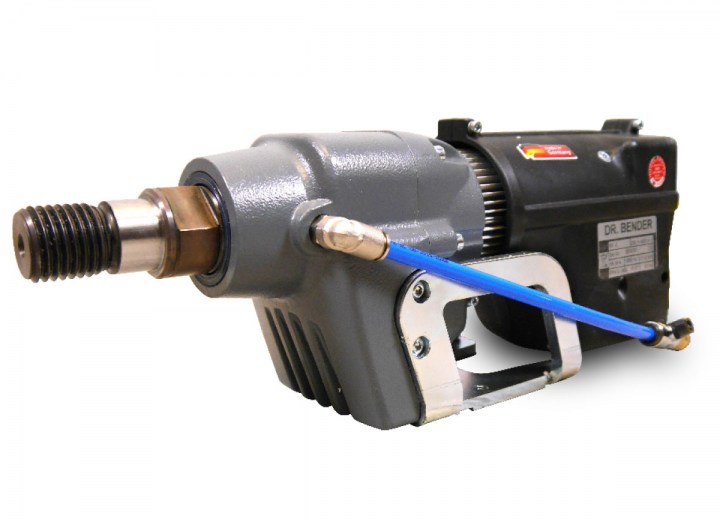

Drilling motor SXC
_______
- Drilling – up to Ø 18” (450 mm) maximum
- The wide voltage range allows operation at 230 volts and 400 volts – 480 volts AC
- The machine stops immediately by electronic quick-stop function
- Integrated service display
- An up to 30% higher efficiency brings higher power output and more torque
- Durability by using high-quality components
- Ergonomic design with handy dimensions
- SXC with air-cooling
Specification
| Phase |
|
3~ |
|
1~ |
| Rated voltage |
|
400 V / 480 V |
|
230 V |
| Rated power |
|
8.000 W |
|
3.700 W |
| Rated frequency |
|
50-60 Hz |
|
50-60 Hz |
| Rated current |
|
16A |
|
16A |
| Rated speed |
|
0-850 min-1 |
|
0-850 min-1 |
| Rated torque |
|
180 Nm |
|
120 Nm |
| Drill bit diameter |
|
1.5-18 in. (40-450 mm) |
|
1.5-18 in. (40-450 mm) |
| Tool fitting |
|
UNC 1 1/4 in. |
|
UNC 1 1/4 in. |
| Cooling medium |
|
air |
|
air |
| Weight |
|
18 lbs (7,8 kg) |
|
18 lbs (7,8 kg) |
| Order Number |
|
B302189 |
|
B302189 |
