SLURRY FOX SFP 3L
The mobile solution for your day to day operation
Portability:The Slurryfox SFP 3L is designed for sawing and drilling contractors who require portability on the jobsite for water recycling and reuse.
One-Man operation: The filter press incorporates many of the same components as the Slurryfox SFP 8L but is built so that it can be handled by one person.

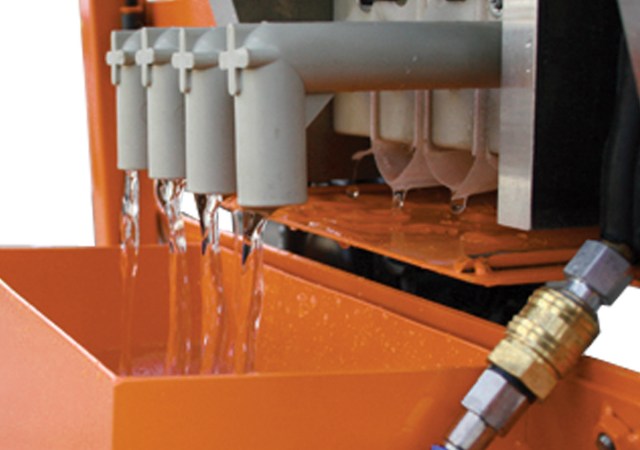

360° closed-loop concept: The SFP 3L is the ideal solution for slurry water processing at the source, or on the truck, utilizing the “360°“ closed-loop concept for water recycling.
Powered by a single-phase air compressor, the new SFP 3L is the most efficient solution for concrete slurry processing. Separation of solids and water allows for compliant disposal.

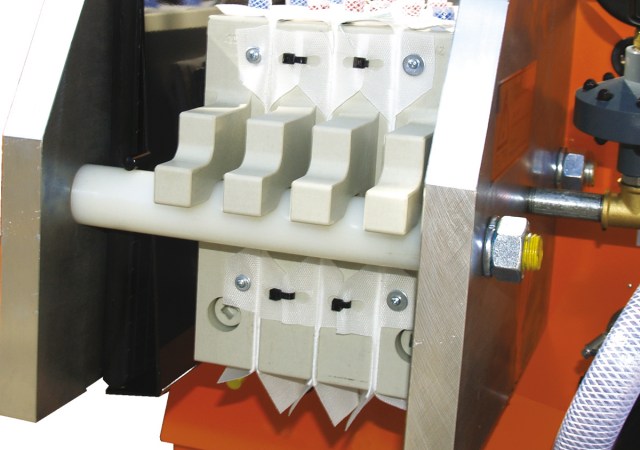

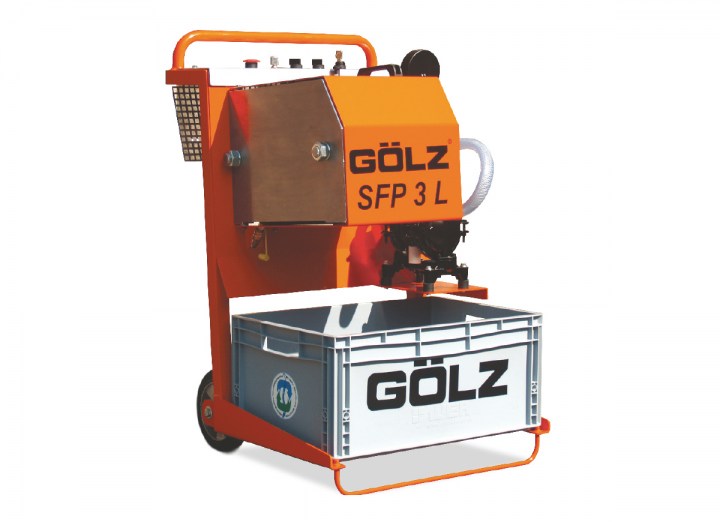

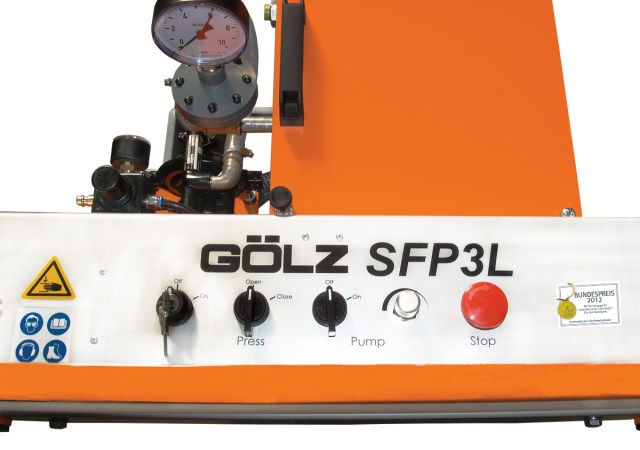

Consisting of three elements – container, chamber filter press and control unit – the SFP 3L is the most compact, mobile, simple to operate and efficient filter press on the market.
|Air required:||66 gal / 116 psi||250 l / 8 bar|
|Recycling Capacity||100-160 gal/hour||400 – 600 l/Std|
|Filtervolume (solids)||0,7 gal||2,4 liter|
|Dimensions (LxWxH)||24×25×38 in.||600×630×950 mm|
|Weight||174 lbs||79 kg|
|Order number||0284 000 2000|
Recommended Air Compressor
|Air compressor||GV22-11 or (Ingersoll Rand P1.5IU-A9)|
|Motor||Single Phase 230 V, 2,2 kW (115 V- 1,5 kW)|
|Capacity||89 gal/min||340 l/min|
|Airpressure||116 psi||8 bar|
|Compressor Unit||2 cylinder – 1.450 rpm|
|Order number||0295 150 0115|
