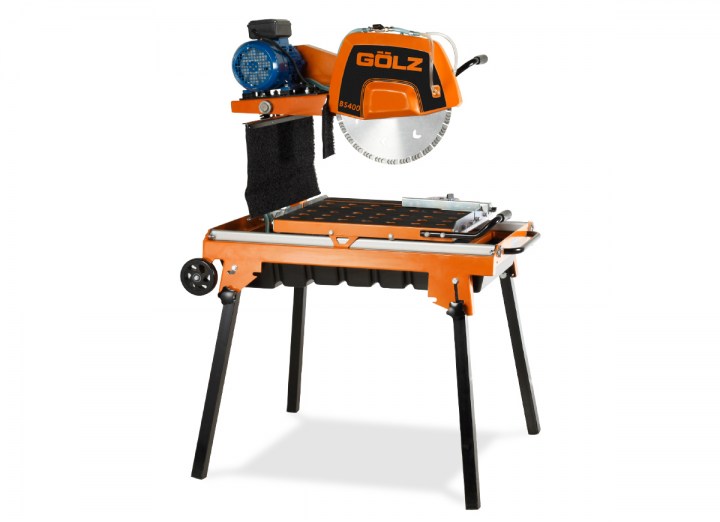

BS400
Powerful and robust 16 in. masonry saw, available with electric motor or Honda gasoline engine.
Cutting length 26 in. (650 mm)
Blade-Ø 16 in. (400 mm)
Cutting depth 6 in. (150 mm) 11 in. (280 mm)
- Optional electrical motor or gasoline engine
- Cutting head with elastic device, easy for operation
- Electric water pump with quick coupling, easy for changing the pump (electrical motor version)

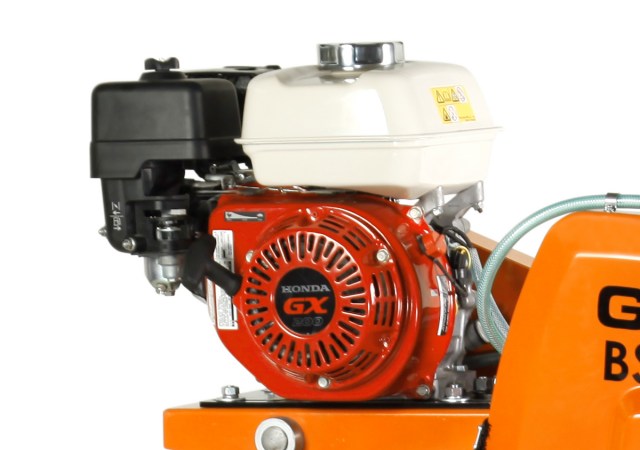

- High efficient mechanical water pump (Honda motor version)
- Max. cutting depth up to 6 in. (150 mm) and 11 in. (280 mm) (double-sided cutting)
- Max. cutting length up to 26 in. (650 mm)

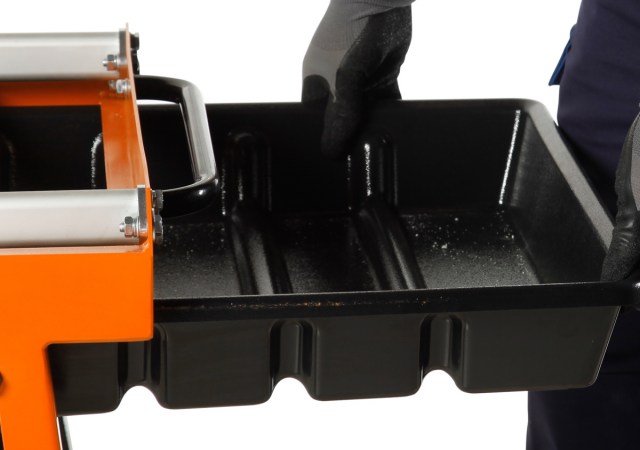

- Removable water tub, easy for cleaning
- Foldable legs
- Removable blade guard for easy blade change

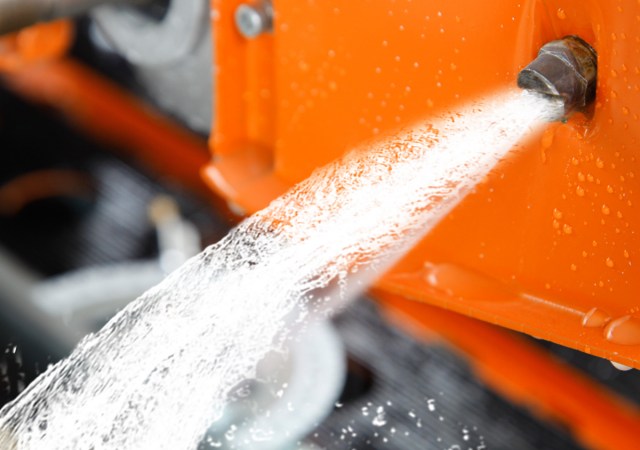

- Special water nozzle for optimized water cooling

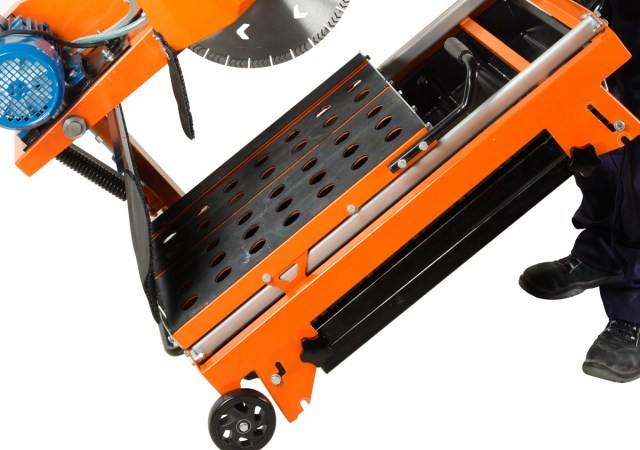

- Transportation wheel, easy for moving
Specifications
| GÖLZ BS400-E | GÖLZ BS400-P | |
| Motor | Electric, 110 V / 220 V / 20A, 50 Hz | Honda GX160 |
| Power | 2,2 kW | 4,0 kW / 5,5 HP |
| Max. cutting depth | 6 in. (150 mm) 11 in. (double-sided cutting 280 mm) | 6 in. (150 mm) 11 in. (double-sided cutting 280 mm) |
| Max. blade size | 16 in. (400 mm) | 16 in. (400 mm) |
| Arbor hole | 1 in. (25,4 mm) | 1 in. (25,4 mm) |
| Cutting length | 26 in. (650 mm) | 26 in. (650 mm) |
| Shaft speed | 2650 min-1 | 2550 min-1 |
| 45° miter-cut | No, Miter-block optional | No, Miter-block optional |
| Water pump | S2, 110 V, 50 Hz, 55Watt | efficient mechanical water pump |
| Blade flange size ø | 3.5 in. (90 mm) | 3.5 in. (90 mm) |
| Transport wheels | yes | yes |
| Cutting table (LxW) | 24×21 in. (600×530 mm) | 24×21 in. (600×530 mm) |
| Dimensions: (LxWxH) | 44×25×55 in. (1110×640×1400 mm) |
44×25×55 in. (1110×640×1400 mm) |
| Weight | 198 lbs (90 kg) | 205 lbs (93 kg) |
| Order-Nr. | 0282 400 1000 (230 V) | 0282 400 1300 |
| 0282 400 1100 (400 V) |
| Accessories | ||
| Spare water pump with connector plug | 0289 400 9002 | |
| 45° Miter-block | 0289 350 1900 |
