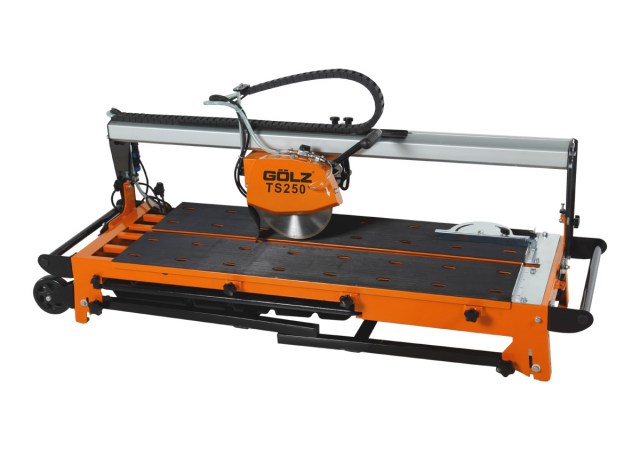

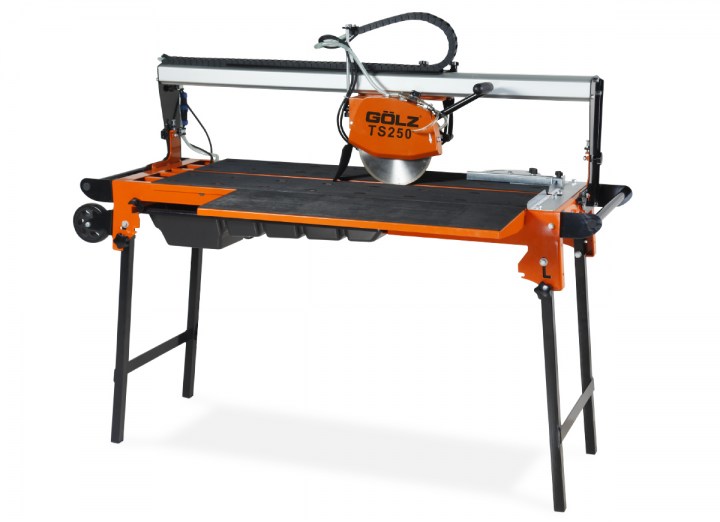

TS250
Professional tile cutting machines
TS250, Blade 10 in. (250 mm) Cutting length 44.875 in. (1,140 mm)

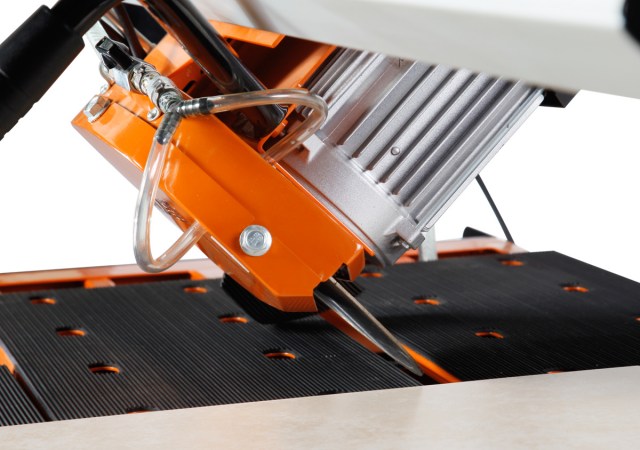

- Cutting head adjustable up to 45° (Jolly cutting)

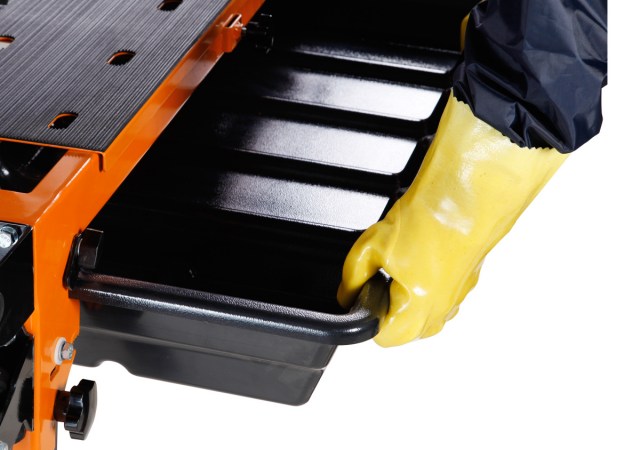

- Removable water tub, easy for cleaning

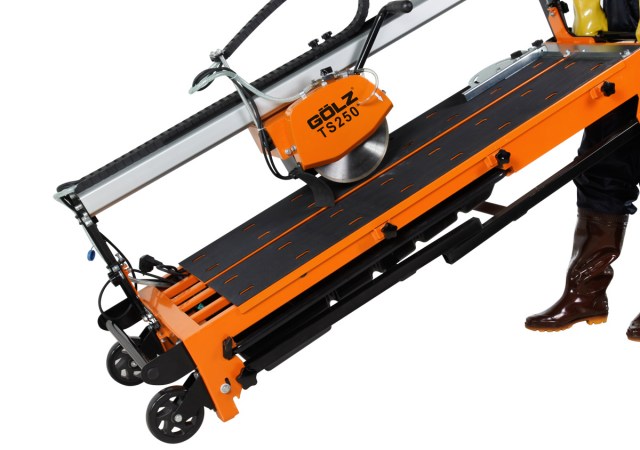

- Foldable legs

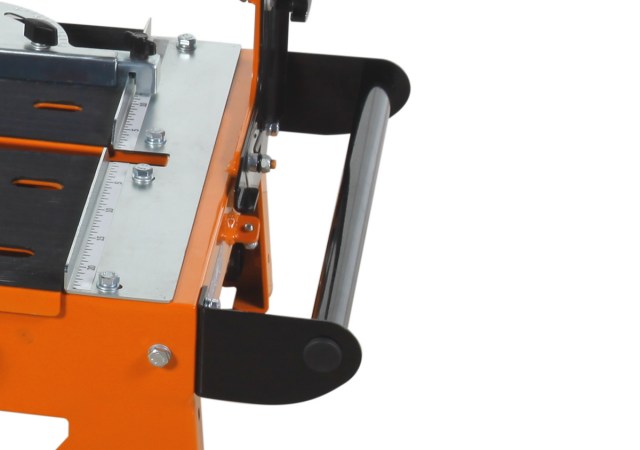

- Adjustable cutting length

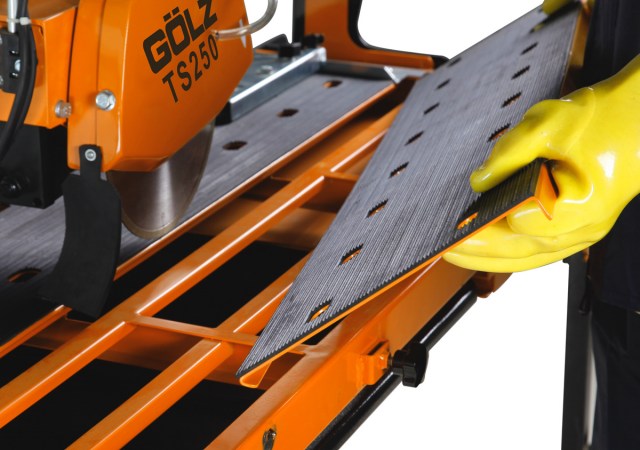

- Removable cutting table, easy for cleaning

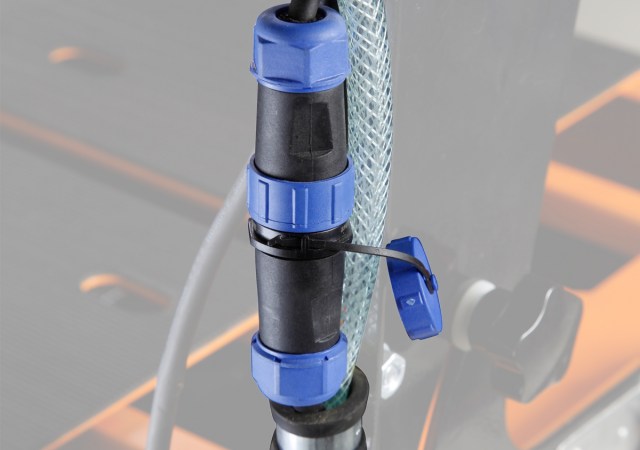

- Electric water pump with quick coupling, easy for changing the pump
- Pluggable blade guard for easy changing of diamond blade
Specifications
| GÖLZ TS250 | |
| Motor | Electric,110V, 20A, 50Hz, IP54 |
| Powe | 1,3 KW |
| Max. cutting depth | 2.5 in. (65 mm) |
| Max. blade size | 10 in. (250 mm) |
| Arbor hole | 5/8 in. (15,875 mm) |
| Cutting length | 38.5 in. (980 mm) 44.875 in. (1140 mm) |
| Shaft speed | 2,800 min-1 |
| 45° miter-cut | Built-In |
| Water pump | S2, 110V, 20A, 50 Hz, 55 Watt |
| Blade flange size ø | 2.5 in. (64 mm) |
| Transport wheels | yes |
| Cutting table (LxW) | 44.875×18.875 in. (1140×480 mm) |
| Dimensions (LxWxH) | 64.5×21.25×51 in. (1640×540×1299 mm) |
| Weight | 158lbs (72 kg) |
| Order-Nr. | 0289 250 1000 |
| Accessories | ||

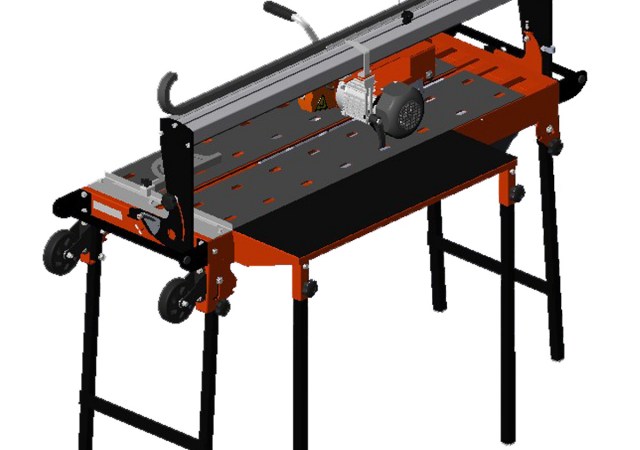

| Side table (optional accessory) | 0289 200 1900 | |
| Spare water pump with connector plug | 0289 400 9002 | |
| Set of Transport wheels | 0289 400 9068 |
