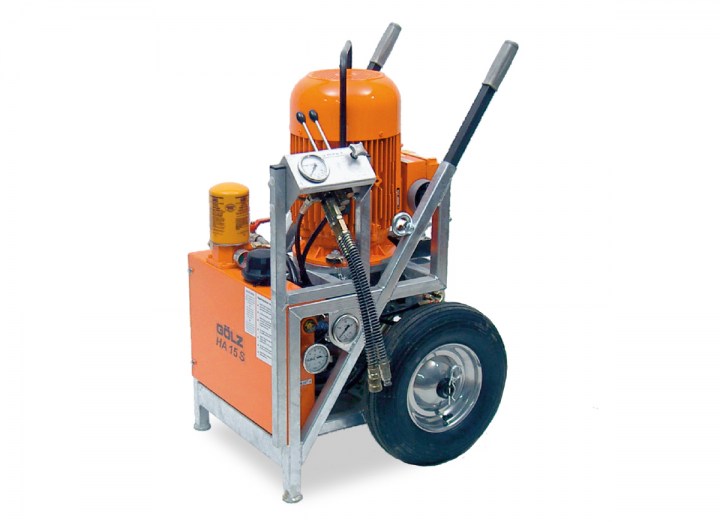

HA15S
Drive unit HA15S with remote control suitable for hydraulic wire saws, wall saws and drilling

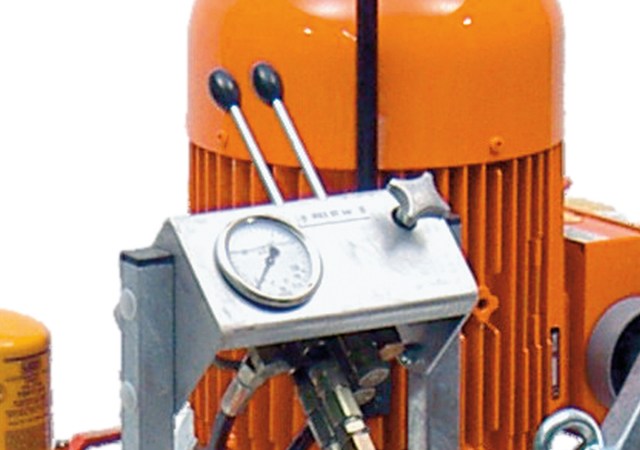

- Remote control for wire saw drive motor and hydraulic feed motor
- Water cooled oil cycle
- 3 seperate oil cycles (30 l/min and 40 l/min for hydraulic drive, 6 l/min for feeding motor)

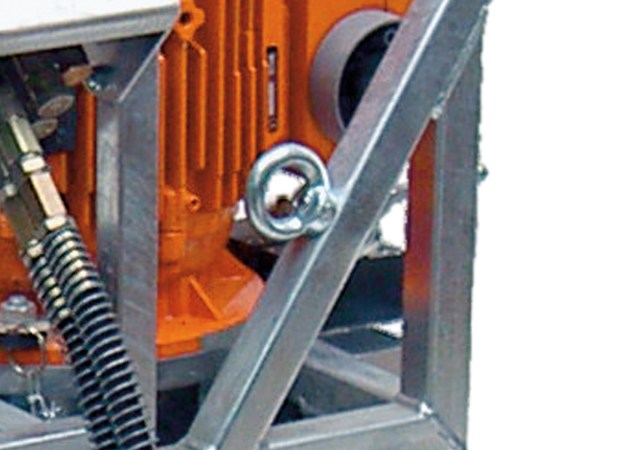

- Electric motor can be disassembled for easy transport”
Specifications
| Motor | 3 phase electric motor |
| Power | 15 kW |
| Voltage | 400 V, 32 A |
| Frequenzy | 50 Hz |
| Hydraulic pump | gear type pump |
| Operation pressure | 250 bar |
| Feeding pressure | 6 l/min, at 0 – 60 bar |
| Oiltank | 11 l |
| Weight complete | 286 lbs (130 kg) |
| Dimensions (LxWxH) | 25×23×38 in. (640×570×970 mm) |
| Order number | HA15S |
