Compact and high performance wire sawing in construction structures

Safe and clean, dry and wet wire sawing

The most efficient solution for wire sawing in reinforced concrete and brickwork.

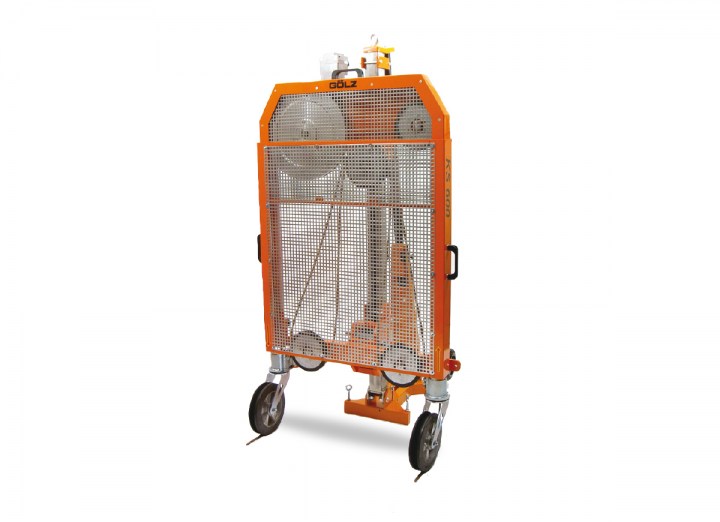

Based on the modular Gölz system, the KS600 wire saw can be setup in short time.
Conversion to a core drill rig within just a few minutes.

  • Wire saw is based on KB500 core drill rig

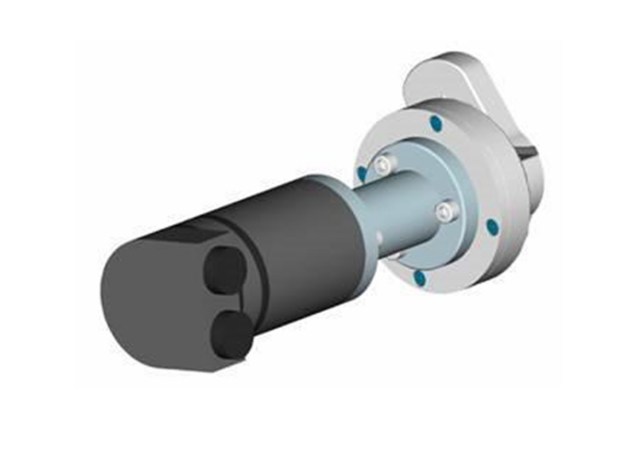

  • Easy setup by modular quick release system Drive motor and feed motor can be attached simply by quick connectors
  • Wire storage 5,5 m
  • Quick, reliable and safe working by directly attaching the wire
    saw to the cutting surface

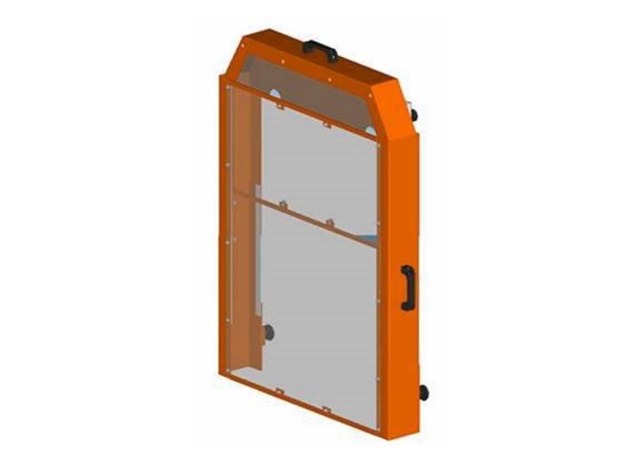

  • Wire guard allows safe and clean operation

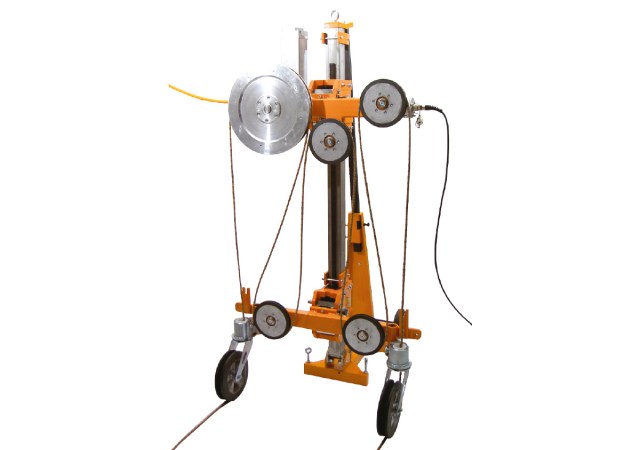

  • Wire storage optimized by using corner pulley

Drive hydraulic
Power 30 l/min at 250 bar
Wire storage 5,50 meter
Wire-Ø 8 in. (200 mm)
Drive-Ø 16 in. (400 mm)
Dimensions (LxWxH) 26×34×72 in. (650×850×1820 mm)
Weight complete 282 lbs (128 kg)
Order number 0283 600 1000
